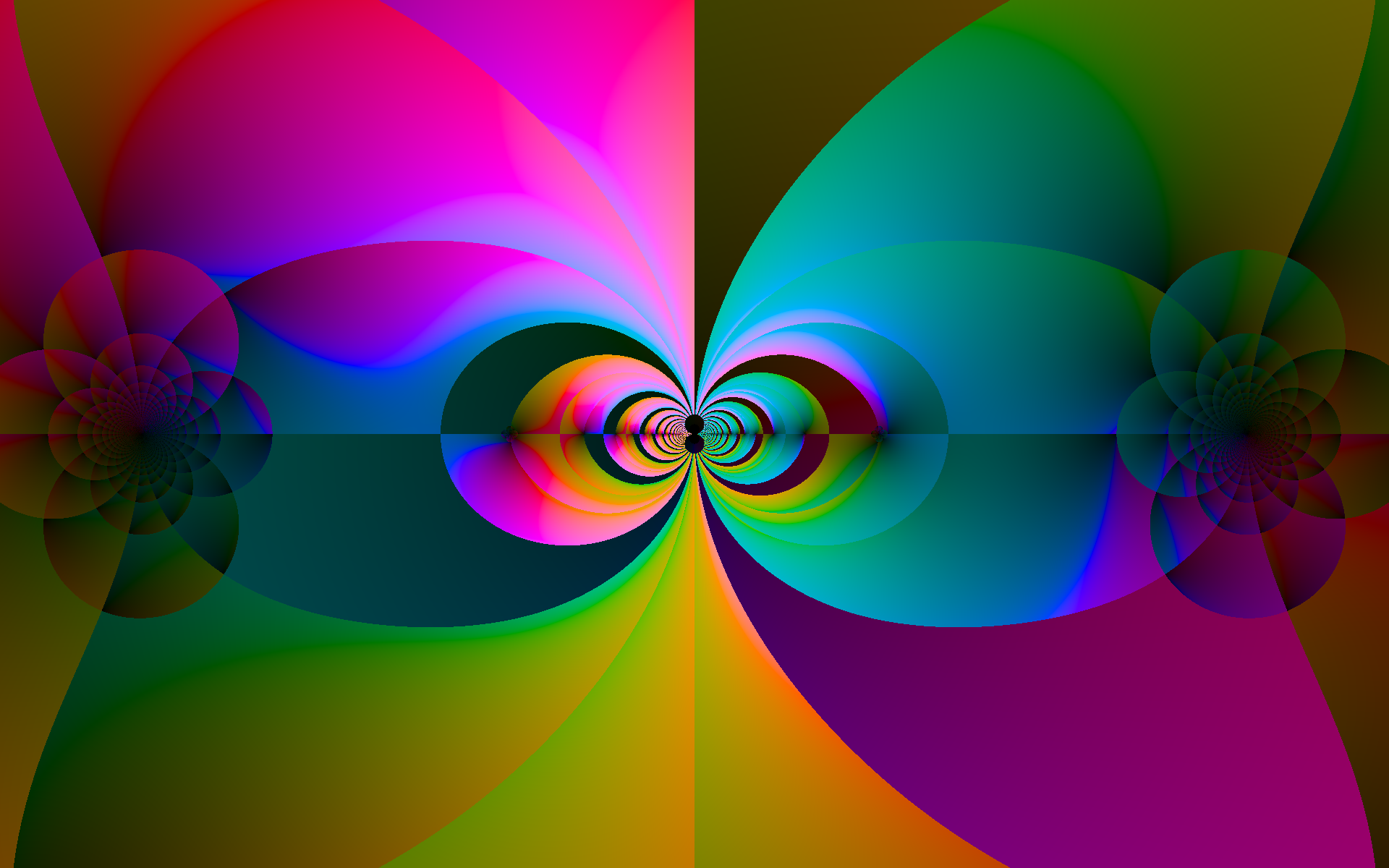

Kolori ("to color" in Esperanto) is an application that allows you to create beautiful images from mathematical functions.

An important note--users with epilepsy are not recommended to use the animation feature (using "t" in your function input) with high speed values or otherwise rapidly-changing functions. Zooming out too far during an animation is also not recommended. This advice is very general and depends heavily on the function being graphed. Still stay cautious, however.

See the gallery/ directory for a gallery of generated images.

• Use your mouse cursor/WASD/arrow keys to pan. If you are on a touchscreen device you may also simply use your finger.
• Scroll, +/-, or z/x to zoom in/out.
• h to hide/show all UI. Hold Shift to also hide/show your cursor.
• r to reload shaders. Hold Shift to also reset zoom and pan.
• p to pause/unpause animations. Animations will also unpause when switching functions.
• q to reset zoom and pan. Hold Shift to also reset animations (set time to zero). Hold Ctrl to only perform the latter.
• f or F11 to toggle fullscreen.
• F12 to take a screenshot. It will be saved in the curent woking directory with filename kolori_screenshotDD-MM-YYYY_HHMMSS.png.

You may always hold Shift to zoom/pan faster.

Input a valid mathematical expression into the "Function" input box using the complex variable "z" and/or the scalar time variable "t". Only the "+", "-", "*", "/", "%", and "^" operators are allowed. Implicit multiplication is also supported. A list of supported functions is found at the top of src/translator.odin. You may also use the constants "i", "pi", "tau", "e", and "phi" (the Golden Ratio).

Some features, such as zooming, panning, and function input are evident both in existance, usage, and ability. This section discusses some of the more interesting features.

Use the scalar variable "t" (stands for "time") in your function for animations. "t" increases linearly with time elapsed.

Example: "z * e^(t*i)" to rotate the plane.

You may control how fast "t" increases using the "Speed" slider in the "Settings" window. The speed has units of "units per second"--a speed of 1 means that "t" will inrease by 1 every second. While the slider is clamped to 0.1..10.0, you may input arbitrary values if you ctrl+click on the slider.

Example: With a speed of 1, the earlier example will rotate the plane at a rate of 1 radian per second.

Since, with high speeds or rapidly-changing functions, this may lead to the display of rapidly flashing lights, using this feature with such is not recommended for those with epilepsy. Even with perhaps "low" speed values, for some functions zooming out far may also cause flashing lights to appear.

We offer several different coloring modes for coloring the complex plane:

• HSL coloring: This is the default. The hue of a pixel at a point z is determined by the z's phase, and lightness determined by the function L(z) = 2/pi * atan(|r|^a), where "a" is a gamma correction constant by default set to 0.65. You are given an option to alter the gamma correction constant in the UI, in addition to the saturation and lightness of colors. In the future, you will be able to alter these functions to e.g. produce contour lines of phase or modulus.

• HSLuv coloring: HSLuv is a perceptually uniform alternative to HSL, where colors with similar lightness appear similarly bright to the human eye, unlike HSL or HSV. How we determine pixel hue and lightness is the same as HSL. You are again allowed to change gamma correction constant and color saturation and lightness.

• Pizza Slices: A fun name for a simple concept. Imagining the complex plane as a circle, or maybe, a pizza, we divide the "pizza" into n equally-sized slices, each painted a distinct color. This is useful for categorizing the phase of points on the complex plane, and creating distinct partitions of the plane.

• Custom palette generation: Input four colors to generate a palette that colors the complex plane. Note that, for this coloring mode, only the real part of the complex function you put in is evaluated. Pixel colors are determined using Inigo Quilez’s cosine-based formula for procedural palette generation. See his article: https://iquilezles.org/articles/palettes/.

• Image tiling: Tile the complex plane with an image of your choice. Instead of a conventional domain coloring based on HSL, phase, and modulus, the plane is instead colored based on a tiling of a user-input image.

• This project is made in the Odin programming language. As such, you will need to install the Odin compiler to build. Instructions for installation are held here: https://odin-lang.org/docs/install/.

• For Mac OS, we also use Clang to build the ImGui binaries, and Python to run the build commands.

• Finally, on Linux and Mac OS, install SDL3 (>= 3.2.0) and libc++ using your system's package manager (apt, pacman, brew, etc.). On Windows, binaries are already provided.

For distribution releases, we use Inno Setup for creating the Windows installer (make sure to add iscc to PATH!) and linuxdeploy and appimagetool for creating AppImages.

1. Clone the repo.

$ git clone --recursive https://github.com/neroist/kolori.git
$ cd kolori

2. (Mac OS only) Build ImGui.

$ cd odin-imgui
$ python3 build.py
$ cd ..

This step only needs to be done once.

You may also change the default compiler from clang to another compiler if need be. We leave such modifications to you. However, in the case that you need to compile with gcc instead of clang, it is sufficient to do a simple search-and-replace operation on build.py in its entirety.

3. Build stb_image

$ sudo make -C $(odin root)/vendor/stb/src

This step (also) only needs to be done once; whether or not you need sudo depends on where you installed Odin.

4. Build the project.

$ make

On Windows without MSYS or MinGW installed, run build.bat instead:

> build.bat
