moecs - easy to use entity component system (ecs) crafted with odin.

Setup
Worlds
Elements
Mutability and deferred actions
Resources
Entities
Components
Tags
Systems
Observers
Relations
Running the world
Iterating entities
Performance
Made with moecs
Memory concept

Clone moecs repository into your project or nearby and import src folder.

import ecs "moecs/src"

main :: proc() { /* ... */ }

The top container is the space (ecs) that consists of worlds. You can create as much worlds as you want and all of them will be proceeded separately. But as a rule, one world is enough for you.

import ecs "moecs/src"

main :: proc() {
  /* Initializes the space (ecs). */
  ecs.init()
  /* Creates new world. */
  world : ^ecs.World = ecs.new_world()
  /* Destroy all objects and free memory. */
  ecs.destroy()
}

Kinds of elements that the world can consist of represented with Element enum.

You must register world elements before running the world.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()

  /* Register components */
  ecs.register(world, .COMPONENT, Position)
  ecs.register(world, .COMPONENT, Rotation)
  /* Register resources. */
  ecs.register(world, .RESOURCE, GameState)
  ecs.register(world, .RESOURCE, Sprites)
  /* Register tags. */
  ecs.register(world, .TAG, Player)
  ecs.register(world, .TAG, Asteroid)
  /* Register relations. */
	ecs.register(world, .RELATION, Joint)

  ecs.destroy()
}

There are methods for getting resources and components: get() and get_mut(). Use get_mut() only if you need to modify at least one instance of receiving resource/component types, otherwise use get() - it is little bit faster. Also use overloaded procedures to get a bunch of elements by one procedure call, the same is true for setting values with set() procedure. Bunch methods gives you more performance because use less memory read/write operations.

When you despawn entities, these actions will be deferred. We need to keep entities in the archetypes till end of the current progress step, otherwise iterators inside systems code can lead to bugs, as they iterate over collections of the archetypes which we need to delete entities from. Entities will be marked as DESPAWNING but despawned (deleted from the block) at performing stage. Also, a new entity can be written in place of a deleted entity, then bugs are inevitable since the reference to the deleted entity will continue to be stored in the archetype collection.

If you set observers for despawning entities, callbacks will also be deferred to the performing stage until the actual moment of despawning.

When you add/remove a component, or set/unset a tag, or relate/unrelate entities they will still present in current archetypes till end of the current progress step. When tags/components/relations is being added/removed to the entity and world is already running, entities should not be moved to other archetypes till end of the current progress step, so this archetyping action is deferred to the perform stage.

This means that changes will will be applied only at the next world progress step.
But setting values to resource/components/relationships is being applied immediately (is not deferred).

Resources are data structures that you only need one instance of and represent game state, sprites (textures), physics parameters, etc. You need to register their types and set their values before getting them. You can add a number of resources that is less or equals MAX_RESOURCES_COUNT, if you need more, please, change this constant manually. You must run the world before setting values to resources.

import ecs "moecs/src"
import b2 "vendor:box2d"

main :: proc() {
  ecs.init()
  world := ecs.new_world()

  /* ...register resource types. */

  /* You should run the world before filling it with elements. */
  ecs.run(world)

  /* Sets resource value (will be copied into storage). */
  ecs.set(world, GameState, &GameState {
    screen     = .Playing,
    fullscreen = false,
    zoom       = 1.0,
    scaled     = time.now()
	})

  /* Gets resource values (making a copy from storage). */
  state, sprites := ecs.get(world, GameState, Sprites)
  /* Gets pointer to resource value (mutable). */
  physics := ecs.get_mut(world, Physics)

  world_def := b2.DefaultWorldDef()
  world_def.gravity = { 0.0, 0.0 }
  /* Mutating resource value (by pointer/in place). */
  physics.world_id = b2.CreateWorld(world_def)

  ecs.destroy()
}

Entities are the main elements of the world. It is the abstract data structure that can be specified by components and tags, and related each with others. Entity is not just an id and has some fields, but you should not care about them and use procedures to work with it. Internally there are bit-set fields which define what components and/or tags, and/or relations the entity has. Thus, when deleting a component/relation and adding/removing a tag, reading/writing to memory does not occur.

When you despawn an entity this action is deferred to the end of the current progress step, so if you want to omit such entities in the current progress step (game frame) use despawning procedure to check that state. Also you may want to check that entity is really despawned if you have a pointer to it from previous progress steps, then use deleted procedure.

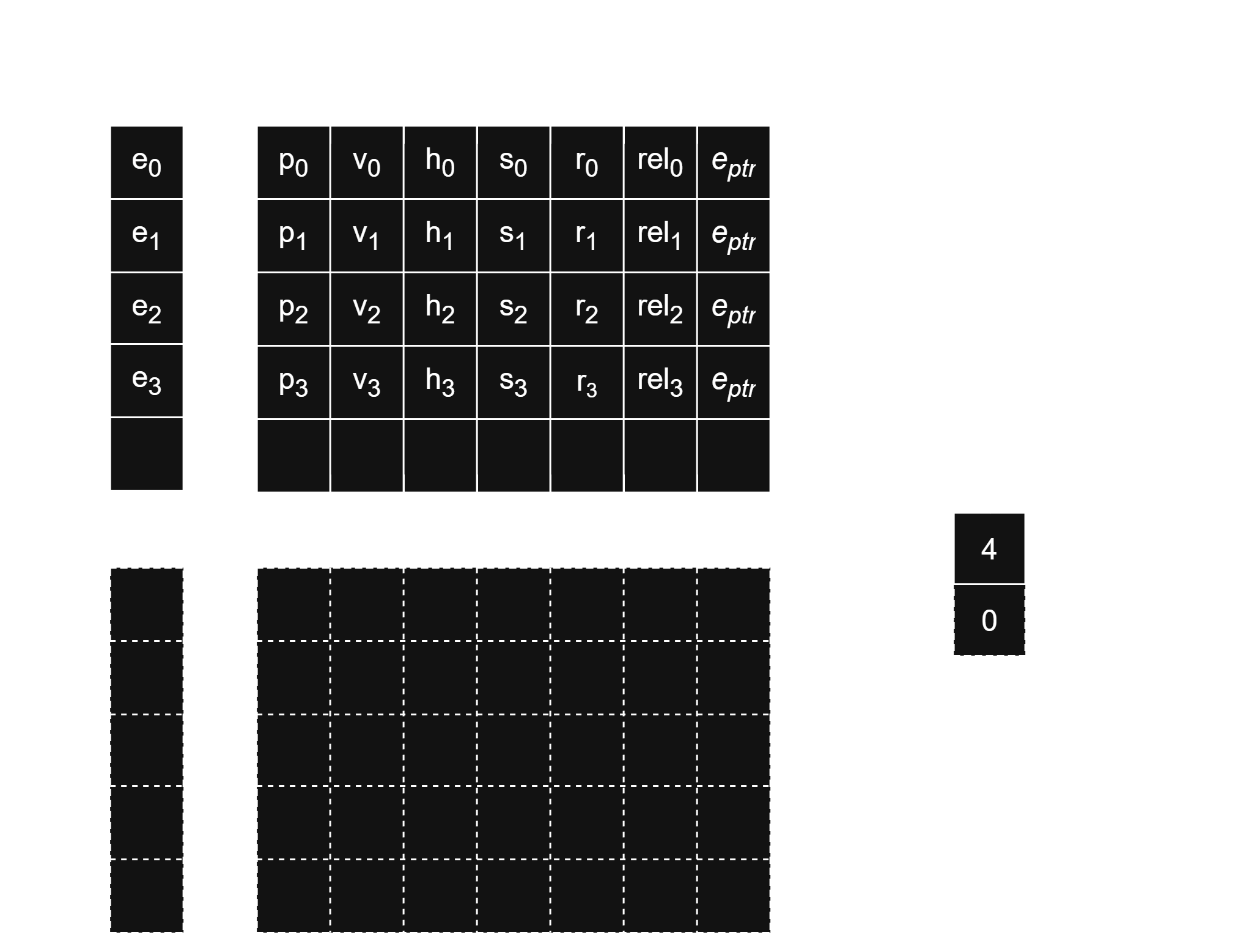

All entities have a lifetime (.DYNAMIC or .STATIC). But you'll not find this data in the entity itself, it is only defined in the memory block the entity belongs to and once entity was spawned its lifetime can't be changed.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()
  ecs.run(world)

  /* Spawns static entity. */
  asteroid: ^ecs.Entity = ecs.spawn(world, .STATIC)
  /* Spawns dynamic entity (.DYNAMIC lifetime is default). */
  ship := ecs.spawn(world)

  ecs.destroy()
}

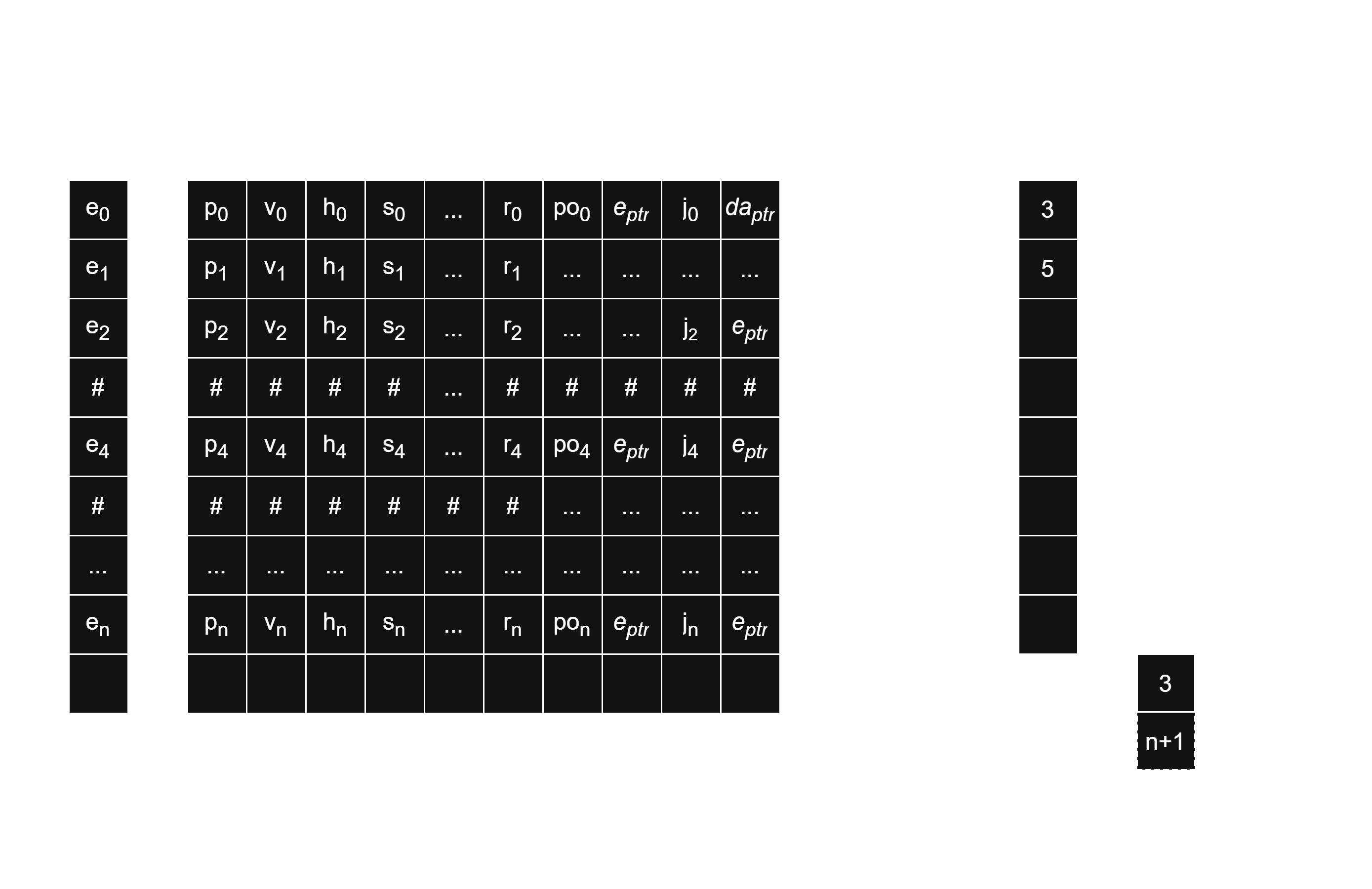

Components are stored in the chunks of a block, internally it is continuous block of memory reading/writing to which is implemented with pointer math. We know entity index, components size and block size (DYNAMIC_CHUNK_SIZE, STATIC_CHUNK_SIZE), so access by pointer is pretty simple.

Entity may has a number of components that less or equals MAX_COMPONENTS_COUNT constant. By default it equals 128 and if you need more, please, change the value of this constant manually.

Component types must be registered before using in the ecs and world should run before you start adding components.

When you add components or set values to previously added components, the changes are stored in the memory immediately and you can read these values at the same world progress step, there are no caching at all. But adding/removing components defer archetypes re-binding (archetyping) till the perform stage, so your systems match queries will consider them only on the next progress step.

The presence of certain components in an entity is determined by bit flags in a special field of the entity structure. Removing a component from an entity does not cause any memory access, but simply sets the corresponding bit. Reading this bit applies to checking for the presence of a component in an entity.

Prefer using overloaded procedures to add/set/get a bunch of components by one procedure call. Bunch methods gives you more performance because use less memory read/write operations.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()
  /* ...register component types here. */
  ecs.run(world)

  ship := ecs.spawn(world)

  /* Adds components to the entity. */
  ecs.add(ship,
    Position, &Position { x = 350, y = 170 },
    Rotation, &Rotation { angle = 90 },
    Velocity, &Velocity { 50 },
    Weapon,   &Weapon   { kind = .Rocket })

  /* Getting one component (mutable method). */
  if weapon, ok := ecs.get_mut(ship, Weapon); ok {
    weapon.kind = .Bullet
  }

  /* Setting values of previously added components. */
  ecs.set(ship,
    Position, &Position { x = 700, y = 900 },
    Rotation, &Rotation { angle = 180 })

  /* Getting several compoents (for reading, making a copy from storage). */
  pos, rot := ecs.get(ship, Position, Rotation)
  /* Getting pointers to component values (mutable method). */
  vel, weapon := ecs.get_mut(ship, Velocity, Weapon)

  /* Removes components from the entity. */
  ecs.remove(ship, Position, Rotation)

  /* Checks if the entity has a component. */
  if ecs.has(ship, Position) {
    ecs.set(ship, Position, &Position { x = 0, y = 0 })
  }

  ecs.destroy()
}

Tags are just attributes (signs) that can be set/unset for entities. Just like components, an entity has a special bit field, in which each bit corresponds to a tag. However, unlike components, tags are not stored in memory chunks. Adding/removing a tag simply means setting the corresponding bit in the entity field.

Entity may has a number of tags that less or equals MAX_TAGS_COUNT constant. By default it equals 128 and if you need more, please, change the value of this constant manually. Tags types must be registered before adding to entities.

Settings/unsetting tags defer entity archetypes re-binding (archetyping) till the perform stage, so your systems match queries will consider these tags changes only on the next progress step.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()
  /* ...register tags and components types here. */
  ecs.run(world)

  entity := ecs.spawn(world)
  /* Tags entity as a Player. */
  ecs.tag(entity, Player)

  entity = ecs.spawn(world)
  /* Tags entity as a Ship that is sleeping. */
  ecs.tag(entity, Ship, Sleep)

  /* Iterate through all the entities in the world. */
	ecs.each(world, callback = proc(entity: ^ecs.Entity, lifetime: ecs.Lifetime, world: ^ecs.World) {
    /* Checks if entity has Player tag. */
    if ecs.tagged(entity, Player) {
      ecs.add(entity, Actions, &Actions {})
    } else {
      /* Remove tag from entity (unset corresponding bit). */
      ecs.untag(entity, Sleep)
    }
  })

  ecs.destroy()
}

Systems are place where your game/app algorithms are living, processing user input, drawing, physics, collisions, effects, entities behavior and anything else can be split into separate systems. They are being ran in the order they were mounted to the world for each phase in the progress pipeline.

Internally systems are represented by structs with all necessary configuration inside. There is SystemCallback procedure type that will be called for each system at each world progress step. When you define your system procedure you must follow SystemCallback signature, where first parameter is a pointer to dynamic array of pointers to matched entities and second one id pointer to the world.

You pass a list of component types and/or tag types, and/or relation types when mounting a system and these set is a match query for selection of entities which will be passed to system callback. Entity must have all components, relations, and tags defined for the system to match its query condition (but it also may have more, it hasn't to be exact match). If you need to exclude entities without some components/tags/relations from the query result (entities mustn't have them added), you can use without condition when mount the system. If system has no specified components/tags/relations and without conditions it is considered as a task, no queries are executed for them at each progress step, and nil is passed as first argument of callback procedure (instead of matched entities array).

There are two query match approaches of selection entities for the systems.

You can give the system a name to have ability to get/execute/enable/disable it manually, but name is just a property, systems with name run in pipeline exactly same way as without it. To exclude system from pipeline its phase must be set to MANUAL. Disabled systems are not called and no queries are executed for them at each progress step till they will be enabled again.

When you mount a system only callback parameter is mandatory, in this case system will be a task and run in UPDATE phase. These are all parameters of mount procedure you can use when mounting a system.

You can mount systems only when the world is already running, because of necessary indexes sorting made in run procedure of the world.

import ecs "moecs/src"
import k2 "karl2d"

main :: proc() {
  ecs.init()
  /* You can pass approach here, default is .ARCHETYPE, recommended. */
  world := ecs.new_world(.ARCHETYPE)
  /* We must mount systems after the world run. */
  ecs.run(world)

  /* Mount system that will run only once after world starts. */
  ecs.mount(world, callback = load_world,     phase = .START)
  /* Mount systems which will run in .UPDATE phase (default). */
  ecs.mount(world, callback = actions,        components = { Handle, Actions, Weapon, Ship }, tags = { Player })
  ecs.mount(world, callback = physics,        name = "physics")
  /* You can use query or/and components and tags fields to define system query (list of components and tags). */
  ecs.mount(world, callback = draw,           query = { Position, Rotation, Sprite, Center, Size })
  ecs.mount(world, callback = collisions,     components = { Collision, Handle, Position, Center })
  /* Use without condition to exclude listed components/tags from system query result. */
  ecs.mount(world, callback = materialize,    query = { Position, Rotation }, without = { Handle, Player })
  /* You can query entities with relations to get secific entities. */
  ecs.mount(world, callback = drive,          query = { Position, Rotation, Joint, ecs.ParentOf }, tags = { Car })
  /* Mount systems to run them manually (phase = .MANUAL). */
  ecs.mount(world, callback = load_resources, name = "load-resources", phase = .MANUAL)
  ecs.mount(world, callback = destroy,        name = "destroy", phase = .MANUAL)

  /* Execule system by its name. */
  ecs.execute(world, "load-resources")

  for k2.update() {
    k2.clear(k2.BLACK)
    /* World progress step. Systems run in mounting order for each phase
       in phases order: PRE_UPDATE, UPDATE, POST_UPDATE. */
    ecs.progress(world)
    k2.present()

    /* Turn off/on physics processing. */
    if condition() do ecs.disable(world, "physics")
    else do ecs.enable(world, "physics")
  }

  /* You can unmount the system this way even if the world is already running.
     Maybe you know that do not need it any more, but disabling is recommended. */
  if ecs.has(world, "physics") do ecs.unmount(world, "physics")

  /* Manually free all game resources in this system. */
  ecs.execute(world, "destroy")
  ecs.destroy()

  k2.shutdown()
}

Observers are a mechanism that allows to subscribe on events of structural, relational and data changes in the world. By default observers are disable for performance reasons, so you need to pass true for observable argument of new_world procedure when you create the world. You also can change observable property of the world to turn off/on observers globally.

There are different event types that can be handled for entities, components, and tags.

Keep in mind that when you add/remove a component repeatedly or set/unset a tag repeatedly, the events will also be fired repeatedly for each operation even if you already made it before. It is safe for the data to call add_component (for example) procedure several times and pass the same component type to it, but your observers logic can be broken, so you need care about it yourself.

You can turn on/off observers for a specific component/tag/relation type or globally for an event type. You can also check whether an observer is set or turned on. Events are not supported for resources.

When you set an observer using observe you must provide callback procedure that should follow ObserverCallback procedure type. SPAWNED/DESPAWNED events are being thrown for all entities and there are nothing to pass for type, element and relation parameters, so they will be nil for these events in callback. Pointer to event target entity will be passed as entity parameter to callback. For TAGGED/UNTAGGED events tag type will be passed as type parameter, but element and relation will be equals to nil. For ADDED/REMOVED/SET events relation parameter will be nil. And finally for RELATED/UNRELATED events all callback parameters will be set. For two last cases element parameter is a pointer to event/relation target component/entity value, you can safety change it's value in place or read it, previously cast rawptr to expecting component/entity type pointer.

When you provide several types in observe/unobserve procedures the same callback will be assigned as specific event handler for each of these types. This is done for convenience, there are no group observers, they are set separately for a specific event and element (component/tag/relation) type.

You must set observers only when the world is already running, because of necessary indexes sorting made in run procedure of the world. Subsequent setting observers for some configuration will replace previous ones.

import ecs "moecs/src"

/* Observer callback procedure declaration. */
added :: proc(world: ^ecs.World, entity: ^ecs.Entity, event: ecs.Event, type: typeid, element: rawptr,
  relation: rawptr) {
  switch type {
    case Position:
      pos := cast(^Position)element
      /* Do not use observers for such purposes, it's just example. */
      pos.x += 50
      pos.y += 50

    case Center:
      center := cast(^Center)element
      /* Component values will be safety changed in place. */
      center.cx += 50
      center.cy += 50
  }
}

main :: proc() {
  ecs.init()
  /* Enable observers when create the world. */
  world := ecs.new_world(observable = true)
  /* ...register tags and components types here. */
  ecs.run(world)

  /* Set observers for entity spawning/despawning, you need to provide only callbacks. */
  ecs.observe(world, event = .SPAWNED,   callback = spawned)
  ecs.observe(world, event = .DESPAWNED, callback = despawned)
  /* You can set observers for one or several types, subsequent assignments replace previous ones. */
  ecs.observe(world, event = .ADDED,     types = { Rotation }, callback = added_rot)
  ecs.observe(world, event = .ADDED,     types = { Position, Center, Health, Velocity }, callback = added)
  ecs.observe(world, event = .REMOVED,   types = { Center, Position }, callback = removed)
  ecs.observe(world, event = .SET,       types = { Position }, callback = set_pos)
  ecs.observe(world, event = .SET,       types = { Center, Rotation, Health, Velocity }, callback = set)
  ecs.observe(world, event = .TAGGED,    types = { Ship, Asteroid }, callback = tagged)
  ecs.observe(world, event = .UNTAGGED,  types = { Ship, Asteroid }, callback = untagged)
  ecs.observe(world, event = .RELATED,   types = { ecs.ParentOf, ecs.ChildOf, Joint }, callback = related)
  ecs.observe(world, event = .UNRELATED, types = { ecs.ParentOf, ecs.ChildOf, Joint }, callback = unrelated)

  /* Turn off all added events for all component types. */
  ecs.turn_off(world, .ADDED)
  /* Turn off added events for Velocity component type. */
  ecs.turn_off(world, .ADDED, Velocity)

  if ecs.observable(world, .SET, Position) {
    /* Remove observer for set event of Position component type. */
    ecs.unobserve(world, .SET, { Position })
  }

  /* Turn on all added events for all component types.
     It is still turned off for Velocity component type. */
  if !ecs.turned_on(world, .ADDED) do ecs.turn_on(world, .ADDED)

  ecs.destroy()
}

Do not enable and use observers unless absolutely necessary. Only do so if something can't be done using systems, as observers are very inefficient and reduce the speed of the ECS. For example, if you're developing a library that utilizes the ECS and initializes and runs the game's physics under the hood using specific components. You need to track the addition and modification of these components to make the appropriate changes to the physics engine. In this case observers are really necessary, for game/app logic use systems, it's much more efficient.

Relations between entities (and only entities) can be set as following kinds:

• One-to-one - one entity related with one other entity by some type and data.
• One-to-many - one entity related with any number of other entities.

You should not care about what kind of relation entity have, you just add/remove relations and ecs will process this internally storing either one pointer to the related entity or a dynamic array of them. In the memory relations are stored right after components in the same chunks and have similar logic of removing/adding.

The important thing about this you should remember is that when you relate one entity with many others, you will always have only one instance of relationship data that is stored in the relation type (struct that you use to create relations). That data will be updated every time when you add new target entity to current relation (relate entity with some other, not related before with, using same relation type). Target entity I call the entity which current one is related with (the entity on the other end of the connection/relationship).
There are three predefined relation types:

For ParentOf and ChildOf relation types you can assign any data to data field that is of rawptr type.

If entity is despawned relations are updated and child entities despawned:

• If entity is a child all relations to it will be destroyed in its parents.
• If entity is a parent all child entities will be despawned (destroyed) but only if they have no more parents. This mean that child can have many parents and is alive while at least one parent still alive. It is logical as while child still have parents it should continue living event if one of its parent is despawned.
• If entity is a custom (defined by you, not predefined) relation target of some other, this relation will be destroyed for that entity.
• If entity has any other custom relations (besides ChildOf and ParentOf, read all) they will be destroyed.

It may sounds very difficult but in practice you should not care about all these, just use relations as you wish.

You can use relations in system queries using separated relations list or add relation types to general query list, also there is an ability to exclude relations by adding them to without list of the system match query. The logic will be same as with components and you have to get necessary relation target entities and relationship data using according procedures inside system callback procedure code block.

import ecs "moecs/src"

Joint :: struct {
  type : u8,
  data : [16]f32
}

/* Related event callback. Relation of `type` is set from `entity` to `target` using `relation` data. */
related :: proc(world: ^ecs.World, entity: ^ecs.Entity, event: ecs.Event, type: typeid, target: rawptr,
  relation: rawptr) {
	switch type {
		case ecs.ChildOf: fmt.printfln("Related: %v, %v", type, (cast(^ecs.ChildOf)relation)^)
		case ecs.ParentOf: fmt.printfln("Related: %v, %v", type, (cast(^ecs.ParentOf)relation)^)
		case Joint: fmt.printfln("Related: %v, %v", type, (cast(^Joint)relation)^)
	}
}

main :: proc() {
  arr := [3]int{ 3, 7, 14 }

  ecs.init()
  world := ecs.new_world()
  /* ...register tags and components types here. */
  /* You have to register relation type. */
  ecs.register(world, .RELATION, Joint)
  ecs.run(world)

  /* You can query entities with relations as you made for components/tags in systems. */
  ecs.mount(world, query = { Joint, ecs.ParentOf }, callback = drive)
  /* You can set observers for creating/destroying relations between entities. */
  ecs.observe(world, event = .RELATED,   types = { ecs.ParentOf, ecs.ChildOf, Joint }, callback = related)
  ecs.observe(world, event = .UNRELATED, types = { ecs.ParentOf, ecs.ChildOf, Joint }, callback = unrelated)

  e1 : ^ecs.Entity = ecs.spawn(world, .DYNAMIC)
  e2 : ^ecs.Entity = ecs.spawn(world, .DYNAMIC)
  e3 : ^ecs.Entity = ecs.spawn(world, .DYNAMIC)

  /* Set e1 as parent of e2. */
  ecs.parent_of(e1, e2)
  /* Set e1 as parent of e3 and add relation data. */
  ecs.relate(e1, ecs.ParentOf { data = nil }, e3)
  /* Relate e1 with e3 by Joint relation and add relationship data. */
  ecs.relate(e1, Joint { type = 7, data = { 0 = 1, 1 = 2, 2..<16 = 3 }}, e3)
  /* Relate e1 with e2 by Joint (add e2 to this relation targets list),
     relationship data is replaced, here by zeroed struct (Joint {}). */
  ecs.relate(e1, Joint, e2)

  fmt.printfln("e1 is parent of e2: %v", ecs.is_parent_of(e1, e2))
  fmt.printfln("e2 is child of e1: %v", ecs.is_child_of(e2, e1))

  e4 := ecs.spawn(world, .DYNAMIC)
  e5 := ecs.spawn(world, .DYNAMIC)

  /* Make e1 also parent of e4 (e3 is still a child), data replaced. */
  ecs.parent_of(e1, ecs.ParentOf { data = &arr }, e3, e4)

  fmt.printfln("e1 is parent of e2, e3, e4: %v", ecs.related(e1, ecs.ParentOf, e2, e3, e4))
  fmt.printfln("e2 has relations: %v", ecs.is_relation(e2))
  fmt.printfln("e2 is relation target of e1: %v", ecs.is_relation_of(e2, e1))
  fmt.printfln("e2 is relation target of e3: %v", ecs.is_relation_of(e2, e3))
  fmt.printfln("e3 with e1 relation of count: %v", ecs.relation_of_count(e3, e1))

  /* Remove Joint relation between e1 and e3. */
  ecs.unrelate(e1, Joint, e3)
  /* Remove relation ParentOf between e1 and e3 using specific proc. */
  ecs.unrelate_with(e1, ecs.ParentOf, e3)
  /* Remove all parent relations with all e1 children. */
  ecs.unrelate(e1, ecs.ParentOf)

  fmt.printfln("e1 is parent of e2, e3, e4: %v", ecs.related(e1, ecs.ParentOf, e2, e3, e4))

  /* Set e1 and e2 as parents of e4. */
  ecs.child_of(e4, e1, e2)

  fmt.printfln("e4 is child of e1: %v", ecs.is_child_of(e4, e1))
  fmt.printfln("e4 is child of e2: %v", ecs.is_child_of(e4, e2))

  /* Get all ParentOf relations of e1, e is a slice to entity pointers, r - relation data pointer. */
  r, e := ecs.relations(e1, ecs.ParentOf)
  /* Get first parent of e4, parent is pointer to the entity. */
  parent := ecs.parent(e4)
  /* Get all parents of e4, parents is a slice of pointers to the entities. */
  parents := ecs.parents(e4)
  /* Get first child entity of e1, child is pointer to the entity. */
  child := ecs.child(e1)
  /* Get all children of e1, children is a slice of entity pointers. */
  children := ecs.children(e1)

  ecs.destroy()
}

After you init the ecs, create the world(s), register all resources, components, tags and relations, you have to call run for your world(s). This procedure checks all necessary conditions and makes adjustments required for working with the declared world, allocates memory for resources. So, first you define the world, describe it, and then you run it, so you can mount systems, set observers, fill the world with resources, entities, components, relations and execute systems.

You game/app will have main loop where you have to call progress procedure for the world. I have called it world progress step before, this method runs all systems for all phases. Archetyping and despawning actions is deferred to the end of progress step, when perform procedure is called. You also can call it manually, but there should be no reasons to do it. It's very rare that changes can't wait until the next step/frame and calling it manually is inefficient.

Finally (after main loop termination) you can destroy all the world(s) (free memory) calling destroy procedure.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()
  /* ...register resources, tags and components types here. */
  ecs.run(world)
  /* ...mount systems here.                                 */
  /* ...set observers here.                                 */

  for loop() {
    ecs.progress(world)
  }

  ecs.destroy()
}

Under certain conditions, you may need to iterate over all entities. You pass callback procedure that will be called for each entity that matched passed lifetime (all by default). This could be in a system or for testing purposes. However, don't overuse this procedure, as it's inefficient. It's not recommended.

import ecs "moecs/src"

main :: proc() {
  ecs.init()
  world := ecs.new_world()
  ecs.run(world)

  /* Iterate through all the entities in the world. */
	ecs.each(world, callback = proc(entity: ^ecs.Entity, lifetime: ecs.Lifetime, world: ^ecs.World) {
    pos, center := ecs.get(entity, Position, Center)
    fmt.println(pos, center)
  })

  ecs.destroy()
}

I am writing this project in my spare time, just like all my other hobby gamedev. If you want the highest performance, it's best not to use any ECS. I love ECS because it allows you to systematize and separate/parallelize logic/data, move each part of the game into its own system, customize its operation, and generalize logic for entities with different components. As for speed, it will vary on different computers. You can play around with main.odin, and see the benchmarks (I use this code for testing). I'd be interested in seeing your results.

Getting (reading) operations executes much faster than setting (writing) ones. Prefer use overloaded bunch procedures to process several elements at once, these methods were optimized for performance.

Use -o:aggressive Odin compiler flag, it can speed up operations in 30 times.

The main idea is that memory for components and relations is divided into blocks, and entities belong to two lifetimes:

• DYNAMIC: usual entities that are spawned and despawned while world exists.
• STATIC: entities that lives forever (same as the world lifetime), like asteroids, planets, buildings.

For DYNAMIC lifetime blocks, components and relations chunks inserted at the end of the block if there are no free rows after previously deleted entities.


Because static lifetime entities lives while the world exists there are no deleting mechanism for them in its blocks, and components with relations are simply inserted to the next free row or new block will be inserted if current one is full.



There are main constants that you can change when copying ECS into your project if you want to experiment with performance:

• DYNAMIC_CHUNK_SIZE: Dynamic lifetime chunk size.
• STATIC_CHUNK_SIZE: Static lifetime chunk size.

This constants defines a number of entity records (entity struct and its component and relations chunk) that will be stored in one memory block. When block is full the memory allocation occurs for the next block.

There is no limitations of entities count, but for resource, components, tags and relations:

• MAX_RESOURCES_COUNT: Maximum resources count available for adding to the world.
• MAX_COMPONENTS_COUNT: Maximum components count available for adding to entity;
• MAX_TAGS_COUNT: Maximum tags count available for adding to entity.
• MAX_RELATIONS_COUNT: Maximum relations count available for adding to entity.
