Demo of using Drawware to transpile a partial game script into JSON and Common Lisp.

• edit the diagram ghoststars.drawio (and save)
• make

For this experiment, we've included all of the odin0d code in with the ghoststars program.

Presently, there is a dearth of components, so this demo can show only a very simple example. In the future, more components will be built up using layers of drawware.

For this experiment, we've hand-built a Transpiler component in Odin which calls Ohm-JS and Fab to do the transpilation. This can probably be done better, but we had to start somewhere...

• grammar.ohm
• fabricate.fab
• support.js
• src.txt

See the appendices for the contents of the above files.

• main
• textfilereader

Main is the main entry point of the executable code¹.

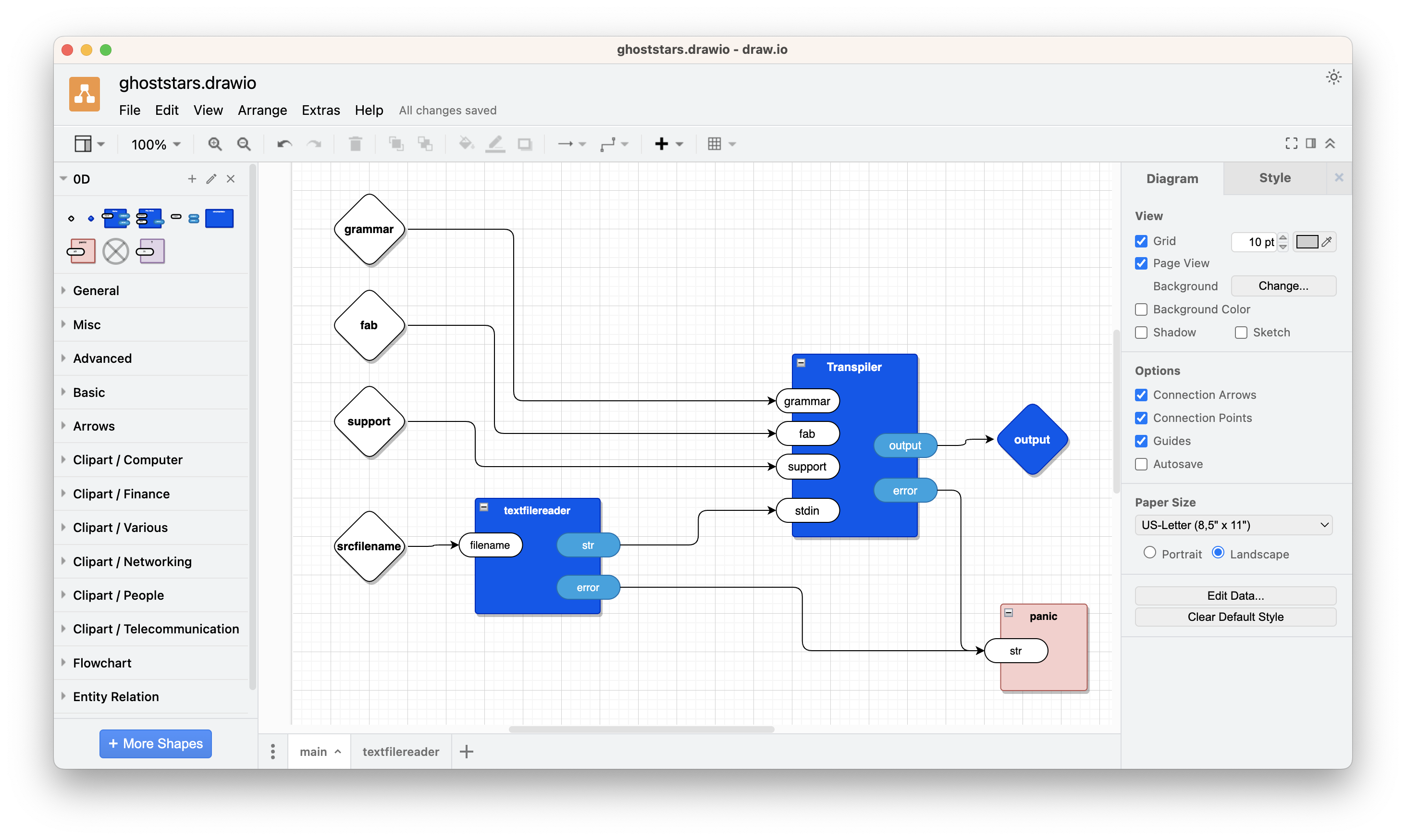

Main contains 4 inputs and one output and a single use of the panic component.

Main contains 2 components

• Transpiler
• textfilereader.

Transpiler has 4 inputs and 2 outputs. In this experiment, Transpiler is coded as a Leaf in the package leaf0d which calls out to a JavaScript routine that invokes Ohm-JS² and Fab³.

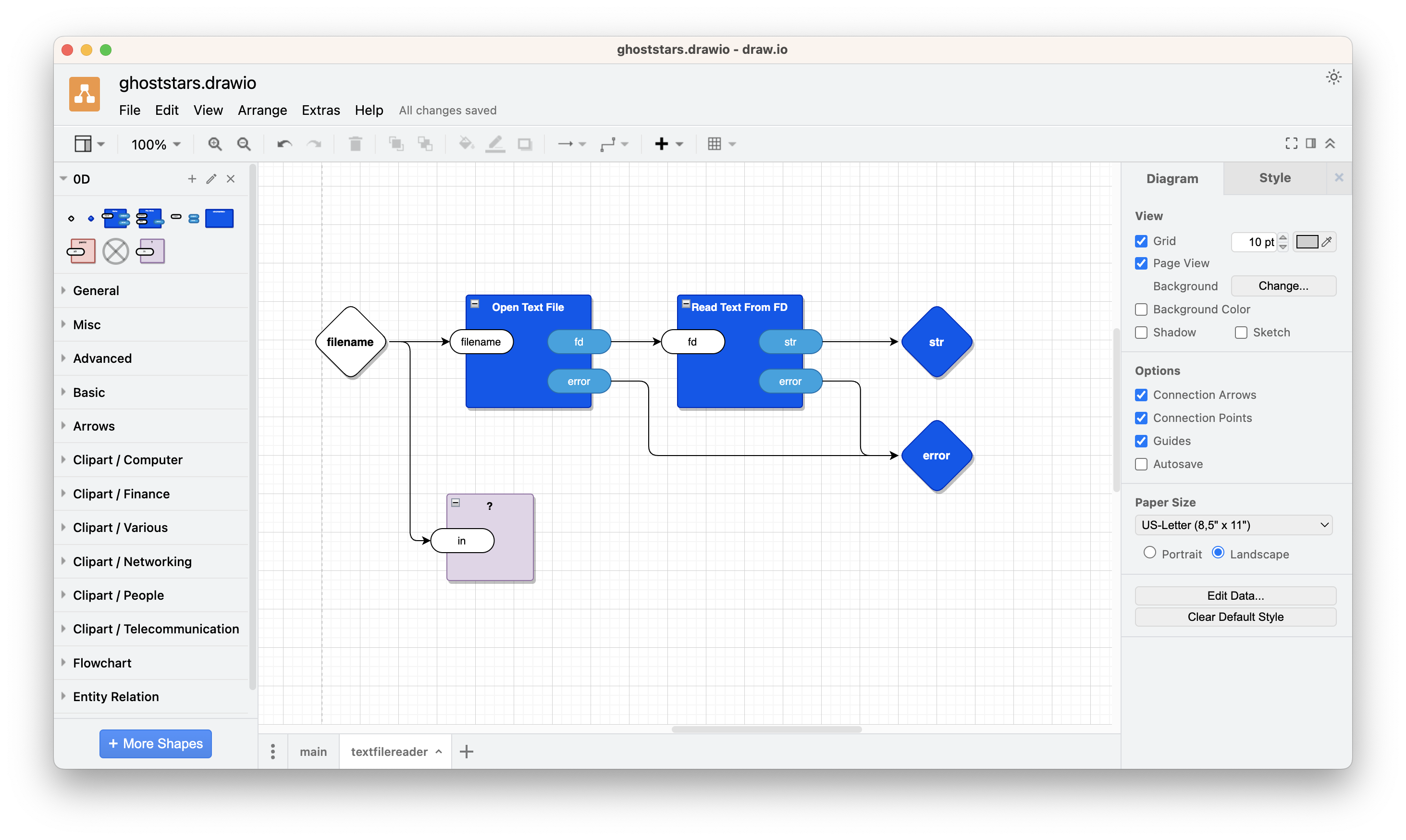

Textfilereader is a Container component that has 1 input and 2 outputs. It invokes 2 Leaf components, Open Text File and Read Text From FD which are coded in Odin (leaf0d/...), for this experiment.

Textfilereader also contains a superfluous use of the ? component to show how it might be used. In this case the incoming string on the port filename is dumped to the console. This has no effect on the operation of the rest of the code.

Note that not all of the output ports fire every time. In the case of textfilereader, for example, only one output port fires

• str sends a string if the file read was successful, but sends nothing if there was an error
• error sends a string if the open or the file read were unsuccessful, but sends nothing if the file was read successfully.

The fact that a port fires can be put to good use in the design of the program. In some cases, you only need to know that a port fired and don't care about the contained data. In EE, this kind of design is called 'edge-triggered'. In EE, one can observe the leading edge and the trailing edge. In this software implementation, one can only observe a pulse with no specific edges, i.e. the software can only know if the port was fired or not, but, cannot know obtain further information about the firing, like beginning-edge-of-firing vs. trailing-edge-of-firing.

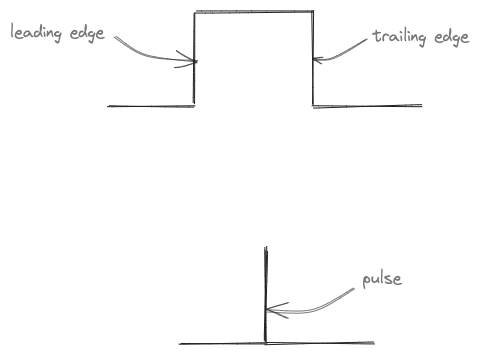

The component palette is on the left sidebar of the draw.io tool. This is called the view>>shapes sidebar. The palette is labelled 0D.

The palette, ideally, should contain every Leaf component. Currently, it only contains a few parts that I dragged onto it manually.

The red part panic causes an Odin assertion failure. For this experiment, I don't care much about errors, so I simply dump all errors into panic. The demo works or it fails, no further nuance.

The purple ? component is a debugging probe. It can be used to watch data coming out of output ports. It can be used to

1. set up a test bench
2. debug drawware programs.

In this experiment, we've stuck a ? component in the textfilereader component. This ? is entirely superfluous here and is included only for expository purposes. Note that probing requires that fan-out be allowed at the technical level. Fan-out brings along with it some technical challenges, like how to make a deep copy of a message and/or how to sample a message. In electronics, probes suck a tiny bit of current away from the circuit. In EE, it is important to design probes such that they are high impedance, which means that they suck only inconsequential amountd of current away from the circuit and don't affect the performance of the circuit. In software, we choose to clone() the message. There might be other ways to accomplish this, but, we haven't figured these out yet. Anyways, copying is trivial if you use a GC'ed language, like Python, JS, Lisp, etc. Odin does not support automatic GC, so one has to design the kernel code (0d/...) carefully to avoid memory leaks.

The circled-X icon is meant for future "type-checking" of NC (No Connection) connections. This kind of checking is not currently implemented.

• 0d/
• process/
• registry0d/
• syntax/
• user0d/
• ./fabghoststars

The implementation of 0D using the Odin programming language.

Each component is described by a data structure called ė (spelled eh in ASCII).

The system treats every component, Container or Leaf, as a tiny state machine with 2 states

1. idle
2. active.

Each component, Container or Leaf, has exactly 1 input queue and exactly 1 output queue. Messages are placed on the queues and processed by the component at its own speed.

Each message contains 2 fields

1. port
2. datum.

The port is a tag. The datum is any kind of data. The port tag allows the receiving component to break down the purpose of an incoming message, or, to queue up an output message with a given purpose. The actual meaning of port tags depends on the project and on the hard-coded implementation of Leaf components.

A component is essentially like a stand-alone mini-processor with internal memory. Each component reacts to one input message at a time and must complete its reaction to a particular message before advancing to the next message. Note that a reaction might include mutation of some instance data (saved state) without producing any output. Reactions are meant to be "short" and "quick" and are allowed to defer full-blown processing of events.

Note that components are activated for every input message. Unlike other so-called dataflow technologies, inputs are not automatically accumulated and synchronized. The component must perform that kind of work itself, when necessary (but, most often, this is not necessary).

Container components can contain:

• Container components
• Leaf components.

Leaf components do not contain other components. Leaf components contain code written in some underlying language. In this experiment, we use the Odin language. See the future section for ideas about using other underlying languages, like Rust, Python, Common Lisp, JavaScript, etc.

A Container component can be thought of as a mini-operating-system, without the need for extra bloatware to handle MMUs, TRAPs, etc. In this perspective, 0D Drawware can be thought of as a way to compose mini-operating systems into full-blown solutions (note the similarity to internet and Arduinos and robotics and blockchain and ...).

Most components - Container or Leaf - "just run". In some cases, though, Leaf components need to do I/O and/or to break out to already-existing code written in a synchronous, long-running manner in some other way. In such cases, these particular Leaf components need to be coded up by systems programmers and must use the set_idle and set_active entry points to change components' state. This technique requires another discussion and will be described in another essay (it is not difficult, but, is on another branch of some other repo)

This package is an Odin implementation of spawning a process with a string command and collecting output sent as a string.

This package creates a database of Leaf and Container components that are available in the diagram and hard-coded in the underlying language (Odin, in this case).

This package is an XML parser that converts .drawio files into internal Odin-accessible form.

The parser recognizes

• rectangles
• text
• arrows
• ellipses
• rhombuses
• .drawio diagram as a series of Tabs
  • each Tab represents a Container component
  • each Blue rectangle represents a Leaf component
  • each empty rhombus represents an input port
  • each blue rhombus represents an output port.

Most everything else is ignored. This makes it possible to put "comments" on the diagram. Currently, we use draw.io sticky-notes for comments, by convention. The shortcut key is s.

This package contains the code (Odin in this case) for Leaf nodes that are available for use in the project.

Each Leaf is described by 2 Odin routines

1. ..._instantiate
2. ..._proc.

The ..._proc (2) procedure is the message handler, which is invoked at runtime every time the component receives a message.

The ..._instantiate (1) procedure is called during build time, i.e. 'load time', just before the program begins to run. A Leaf component can be instantiated multiple times in a project. Each instance causes a call to ..._instantiate. The instantiator creates a unique name for each instance and binds the ..._proc message handler to the component instance.

A component instance usually contains instance data. Due to historic reasons, there are 2 instantiators

1. instantiate simple - create a Leaf component instance with null instance data
2. instantiate with data - create a Leaf component instance with instance data.

In the future, we expect to deprecate the simple kind of instantiator and to make all instantiations create instances with instance data. In the edge case of a Leaf needing no instance data, its instantiator will be called with nil as its instance data.

In this experiment, we supply the pre-made Leaf components

• 1then2
  • low-level component for ordering inputs, input 1 is guaranteed to preceed input 2 in time regardless of possible race conditions ; for use by systems programmers for creating low-level components
• ?
  • probe
• stringconcat
  • concatenate 2 strings into 1 string
• panic
  • Odin assert fail
• command
  • shell out to run a command, with no stdin
• icommand
  • shell out to run a command, with stdin
• Read Text File
  • read a text file given a filename string
• Read Text From FD
  • read a text file given a file descriptor
• Open Text File
  • open a file in text mode, given a file descriptor
• Transpiler
  • given a grammar, a fabrication spec, a support JS file (often empty) and a source text file, produce an output string (a source-to-source transpilation)

Early experimental Leaf components which will be deprecated in the future, but, may serve as inspiration for hard-coded string components in early POCs:

• literalgrep
• literalvsh
• literalpsgrepwcl
• literalwcl
• hard_coded_ps
• hard_coded_grepvsh
• hard_coded_wcl

The leaf0d package currently contains procedures which parse shell components in an automated manner. Components that have names that begin with $ are automatically converted into shell-out commands. The procedures that automate this process are:

• stdout_instantiate
• stdout_proc
• process_instantiate
• process_proc
• collect_process_leaves. The current experimental code requires that these routines be appropriately invoked from the mainline (an experiment that we will change in some way in the future).

This package contains 2 procedures that need to be specified for each unique project:

1. start_logger returns a boolean true/false
2. components appends all Leaf components in the project palette to the procedure argument (a reference to a Registry of leaf initializers)

As mentioned elsewhere, it should be possible to automatically generate the components procedure from a GUI or a mini-DSL. In this experiment, though, we are exploring only the required atomic bits and pieces that are needed to manually plumb a project together.

• main.odin
  • This package is the main entry point

This code must jump through the appropriate hoops to build a component Registry and to parse $ components.

This code must send the kick-off message(s) to the top-level component of a project.

• transpile

A JavaScript program (https://github.com/guitarvydas/fabghoststars/blob/main/transpile) that invokes Ohm-JS twice (once to parse the input and once more to parse and act on the fabrication (transpilation) specification SCN (DSL)).

In this sketch, we use the convention that

• green boxes represent inputs
• a yellow box represents the output
• a blue ellipse represents the Transpiler component.

Transpile a game script to JSON.

• A.I. (Khoj, Llama, etc.) component(s)
• a drawware implementation of a 0D compiler that emits Odin, Python, Common Lisp, JavaScript, etc. code
• a string constant icon which the parser recognizes and generates appropriate component code for
• replace user0d.odin with some kind of mini-DSL or spreadsheet or HTML GUI that automatically generates the necessary code for inclusion in a project
• more game-creation components, Container and Leaf
• more transpilation components, to make source-to-source transpilation easier, e.g. GUIs, etc
• an IDE that supports plugging components together, regardless of the underlying programming language used (probably built with drawware, itself)
• PROLOG, miniKanren, etc. exhaustive search components
• text-to-speech component feeding a transpiler component feeding an immediate-execute component
• Visual Shell
• Speech Shell
• ???

• There is no point in building an a = b + c component, since textual languages already handle that kind of thing succinctly. VPLs should be used to express programs that are hard to express using only text, e.g. like sequencing, processes with multiple inputs over time, processes with multiple outputs over time, etc.
• Most normal people don't want to program computers and don't want to think about tiny little details. They don't want configurability, they just want tools that solve their problems. There is a class of non-programmer domain experts, though, who want to script computers to do what they want, but, they don't want to use traditional programming languages. This class of domain experts use IDEs like spreadsheets and VB to automate processes that they think can be improved, for example automating appointment booking workflows in dentists' offices. This class of non-programmer is happy to hack together solutions using pre-built components, plugging them together like LEGO® blocks. Hypercard® recognized this trend, allowing non-programmers to layer their applications in 5 successively more-configurable levels. Most so-called General Purpose programming Languages are unsuitable for use by normal people, since GPLs are based on a single, underlying Pattern (which we call "synchronous") that makes building anything other than fancy calculators more difficult than normal people would expect.

• Paul Tarvydas - 0d author
• Zac Nowicki - Odin Implementarion (Kagi, GitHub)
• Ghoststars https://oofoe.itch.io/ghost-stars

GhostStars {
text = macro+

macro =
  | applySyntactic<ShowPhrase>
  | applySyntactic<MovePhrase>
  | applySyntactic<WaitPhrase>
  | applySyntactic<FadeToBlackPhrase>
  | applySyntactic<JumpPhrase>
  | lex_spoken
  | period
  | separator
  | nls
  | any

ShowPhrase = "Show" filename "at" Coordinate
MovePhrase = "Move" filename "to" Coordinate TimeSpan
WaitPhrase = "Wait" number "frames"
FadeToBlackPhrase = "Fade" "to" "black" TimeSpan
JumpPhrase = "Jump" ChapterName

lex_spoken = speaker spoken

speaker = speakerSpaces name
speakerSpaces =
  | "                    " -- spaces20
  | tab tab "    "         -- tabtabspaces4

Coordinate = number "x" number
TimeSpan = "over" number "frames"
ChapterName = name
filename = name

spoken = spokenchar+
spokenchar = ~separator any

period = "."
separator = "❖"

name = nameFirst nameRest*
nameFirst = letter
nameRest = "_" | ":" | digit | nameFirst
number = "-"? digit+

nls = nl+
nl = "\n"
tab = "\t"
}

GhostStars {
text [macro+] = ‛\n{ onenter:\n[«macro»true]\n}\n’

macro [x] = ‛«x»’

ShowPhrase [kShow filename kat Coordinate] = ‛\n["image","«filename»",«Coordinate»],’
MovePhrase [kMove filename kto Coordinate TimeSpan] = ‛\n["moveto","«filename»",«Coordinate»,«TimeSpan»,"ease in"],’
WaitPhrase [kWait number kframes] = ‛\n["wait",«number»],’
FadeToBlackPhrase [kFade kto kblack TimeSpan] = ‛\n["fadeout",«TimeSpan»],’
JumpPhrase [kJump ChapterName] = ‛\n["jump","«ChapterName»"],’
lex_spoken [speaker spoken] = ‛\n["say","«speaker»«spoken»"],’
speaker [speakerSpaces name] = ‛«speakerSpaces»«name»’
speakerSpaces_spaces20 [spaces] = ‛                    ’
speakerSpaces_tabtabspaces4 [tab1 tab2 spaces4] = ‛                    ’

Coordinate [number1 kx number2] = ‛«number1»,«number2»’
TimeSpan [kover number kframes] = ‛«number»’
ChapterName [name] = ‛«name»’
filename [name] = ‛«name»’

spoken [cs+] = ‛«cs»’
spokenchar [c] = ‛«c»’

name [nameFirst nameRest*] = ‛«nameFirst»«nameRest»’
nameFirst [letter] = ‛«letter»’
nameRest [c] = ‛«c»’
number [kminus? digit+] = ‛«kminus»«digit»’

nls [cs+] = ‛’
nl [c] = ‛«c»’
tab [c] = ‛«c»’
period [c] = ‛’
separator [c] = ‛’
}

// intentionally left blank

❖ Show prolog_bg at 0x-550. Move prolog_bg to 0x0
over 300 frames. Wait 150 frames.

                    CHEL:NA
          The last time I saw
          her... She was smiling. As
          if she had some secret that
          she couldn't wait to tell me.

          And then, in a sudden wash of
          red, she was gone.

          Gone as if she had never stood
          beneath the uncaring stars.

❖ Fade to black over 43 frames. Jump INTRO.
