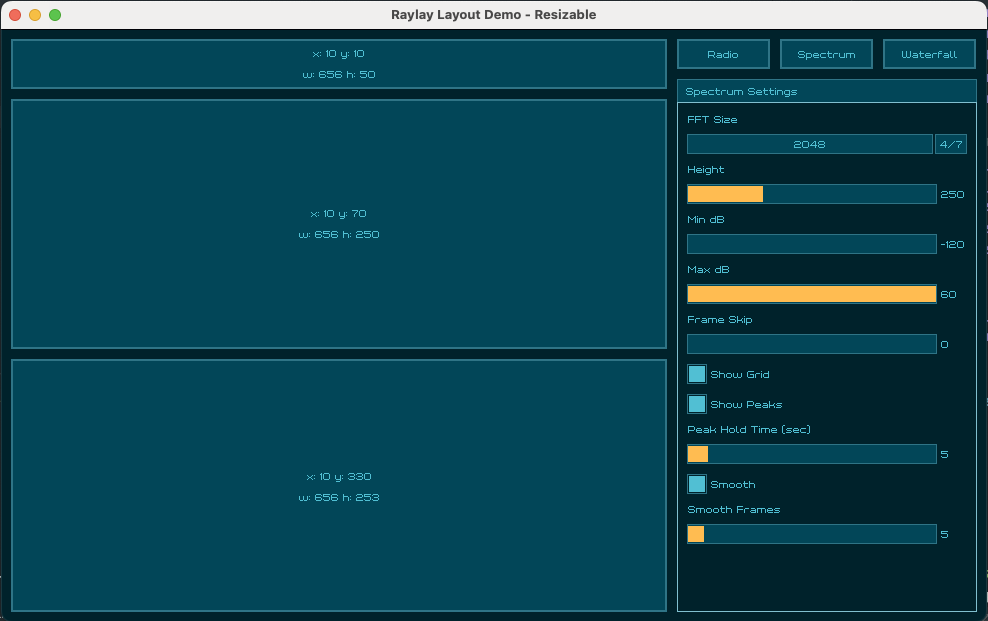

Still a WIP, but core functionality is there - Made mainly for my spectrum analyzer spectro

• I wanted a simple immediate mode flex layout library with as little internal state as possible.
• I wanted to build more advanced UIs faster that still looked good and didn't require so much manual control positioning.

• Favor Intuitiveness and Simplicty over Advanced Features
• Immediate Mode
• Intelligent, Declarative Layouts

• Simple Rows and Columns (thats it, maybe grids laters)
• Easy Stack-based nested layouts
• Stupid simple API (like 3 core functions)
• Resizeable and Auto-adjusting
• Mix flexbox-like and fixed sizes
• Vertical Alignment
• Tiny (core features less than 600 lines of code)
• Stack-based and fast

• Pure Header Only C for Native Raylib Integration
• Grid Layout (maybe)
• More alignments
• Profiling & Timings Output

Just a few lines of code gets you a nice layout. Inside your raylib drawing loop:

See [examples/sidebar/sidebar.odin] for full code including boilerplate

		BeginDrawing()
		ClearBackground(bg_color)

		screen_w := f32(GetScreenWidth())
		screen_h := f32(GetScreenHeight())
		full_rect := rl.Rectangle{0, 0, screen_w, screen_h}

		// Configure Raylay defaults
		RLSetDefaultGap(10) // 10px gap between items
		RLSetDefaultPadAll(0)

		// Toplevel Column: 50px, stretch, 50px
		RLBeginColumn(full_rect, plan = {50, -1, 50}, pad = PadAll(10))

			// Header
			RLBeginRow(RLNext(-1, -1)) 			   // Use the plan size from the parent
				DebugButtonEx(RLNext(100, -1)) // Logo Area
				DebugButtonEx(RLNext(-1, -1))  // Rest of the headers
			RLEnd()

			// Content
			RLBeginRow(RLNext(), plan = {1, 3, 1}) // Flex 1, 3, 1
				DebugButtonEx(RLNext())            // Left Sidebar (deafults to -1, -1)
				DebugButtonEx(RLNext())       	   // Center Content
				DebugButtonEx(RLNext()) 		   // Right Sidebar
			RLEnd()

			// Footer
			RLBeginRow(RLNext())
				DebugButtonEx(RLNext())
			RLEnd()

		RLEnd() // Toplevel Column

		EndDrawing()

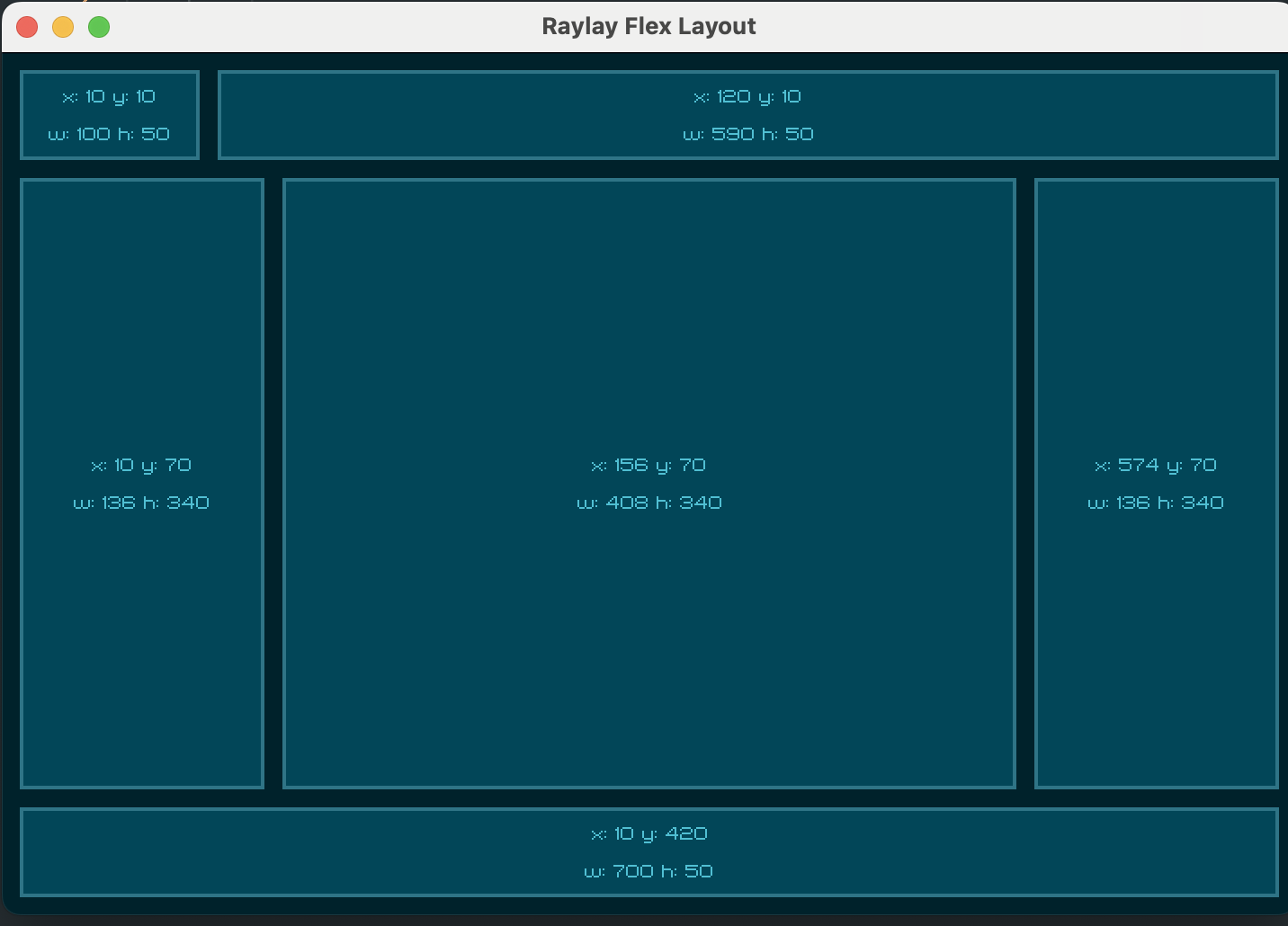

Result:

This section documents the small set of core functions in Raylay. The library is intentionally tiny — you build layouts by creating containers (rows/columns), requesting child rectangles, then ending the container.

Core functions

• RLBeginRow(bounds, pad = RL_DEFAULT_PAD, gap = RL_DEFAULT_GAP, plan = nil)

  • Begin a horizontal container (left → right).
  • bounds: rl.Rectangle - outer bounds for the container.
  • pad: RLPad - padding inside the container (defaults to RL_DEFAULT_PAD).
  • gap: f32 - space between children (defaults to RL_DEFAULT_GAP).
  • plan: []f32 (optional) - layout plan for children (see "Plan values" below).
  • Use RLBeginRow to push a row onto the internal stack; pair with RLEnd().

• RLBeginColumn(bounds, pad = RL_DEFAULT_PAD, gap = RL_DEFAULT_GAP, plan = nil)

  • Begin a vertical container (top → bottom).
  • Same parameters/semantics as RLBeginRow, but lays out vertically.

• RLNext(main = -1, cross = -1, pl = 0, pr = 0, pt = 0, pb = 0, valign = RL_DEFAULT_VALIGN) -> rl.Rectangle

  • Return the next child rectangle from the current container.
  • main: f32

    • = 0: fixed size along the main axis (width for rows, height for columns).

    • -1: in planned containers, use the next plan entry; in ad-hoc containers, fill the remaining main-axis space.
  • cross: f32

    • = 0: fixed size along the cross axis (height for rows, width for columns).

    • < 0: fill the entire cross axis available space.
  • pl, pr, pt, pb: f32 - apply inline padding to the returned rectangle (left/right/top/bottom).
  • valign: RLVAlign - vertical alignment for row containers (TOP, CENTER, BOTTOM, NONE). For column containers horizontal alignment is not yet supported.
  • Returns: rl.Rectangle positioned and sized according to the current container flow.

• RLNextPanel(main, cross, pad_top = 35.0, pad_other = 10.0) -> (rl.Rectangle, RLPad)

  • Convenience helper that calls RLNext(main, cross) and returns a panel-style RLPad for title + margins.
  • Useful when placing framed panels with a header area.

• RLEnd()

  • Pop the current container from the internal stack. Call once per RLBeginRow/RLBeginColumn.

Defaults and setters

• RLSetDefaultGap(g: f32) — set the default gap between children.
• RLSetDefaultPadAll(p: f32) — set a uniform default padding (applies to RL_DEFAULT_PAD).
• RLSetDefaultVAlign(align: RLVAlign) — set default vertical alignment for RLNext calls.

Plan values (used by RLBeginRow/Column plan parameter)

• v >= 20:fixed pixels. The child gets exactly v pixels on the main axis.
• 0 < v < 20: flex weight. The value is treated as a weight; remaining flex space is divided proportionally.
• v == -1: "fill" — treated as a flex weight of 1 (fills remaining space). Multiple -1 entries share space.
• Values < -1 are ignored (treated as zero).

Notes on planned vs ad-hoc mode

• Planned mode: supply a plan array when beginning a container. Each RLNext will use the next plan entry unless you explicitly pass a non-negative main value.
• Ad-hoc mode: no plan provided. Each RLNext(-1) will fill the remaining main-axis space; or pass a concrete main size to request a fixed size.

Quick tips

• Use small plan numbers (1,2,3...) to express flex ratios.
• Use values >= 20 when you need exact pixel sizes.
