This is an attempt to create a simple widget based library in odin. I've never done such a thing before, therefore, this library is more a playground than a real usable library. The idea was more to try different things out and discover sdl3, rather than creating an optimized tool.

The concept behind SGUI is that you can use functions to combine widgets and create a UI the same way you would create a parser using a parser combinator library. The default widgets are meant to be very simple, and therefore they don't provide a lot of configuration. However, the simplicity makes writing new widgets very easy. This is more an "easy to rewrite as you need strategy" instead of having a super complex tool with a lot of options.

Note that the current version use 60 fps rendering which is not usually great for desktop apps. A possible future improvement would be to only redraw widgets that require to be redrawn. The "widget hovering" is also not fully implemented right now (the current system is primitive and does not having floating widgets).

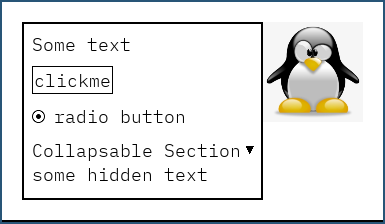

example :: proc(ui: ^sgui.Ui) -> ^sgui.Widget {
    using widgets
    return hbox(
        vbox(
            text("Some text"),
            button("clickme", proc(ui: ^sgui.Ui, _: rawptr) { fmt.println("clicked!!!") }),
            radio_button("radio button"),
            header("Collapsable Section",
                text("some hidden text"),
            ),
            attr = {
                props = {.FitH, .FitW},
                background_color = {255, 255, 255, 255},
                border_thickness = 2,
                active_borders = {.Top, .Bottom, .Left, .Right},
                border_color = {0, 0, 0, 255},
                padding = { 10, 10, 10, 10 },
                items_spacing = 10,
            }
        ),
        image("linux.png", 100, 100),
        attr = {
            props = {.FitH, .FitW},
            background_color = {255, 255, 255, 255},
            padding = { 20, 20, 20, 20 },
        }
    )
}

A widget contains the following informations:

Widget :: struct {
    x, y, w, h: f32,   // position and dimentions
    min_w, min_h: f32, // minimal dimensions used for resizable widgets
    z_index: u64,      // the z axis goes from the screen to the person in front of the screen
    disabled: bool,
    invisible: bool,
    focused: bool,
    children: [dynamic]^Widget,
    size_policy: SizePolicy,
    alignment_policy: AlignmentPolicy,

    /* procs */
    init: WidgetInitProc,       // initialize the widget (can be nil), setup the event handlers here
    destroy: WidgetDestroyProc, // destroy the widget (can be nil)
    update: WidgetUpdateProc,   // update the widget (can be nil)
    draw: WidgetDrawProc,       // draw the widget (required)
    resize: WidgetResizeProc,   // set the w and h (widow resize, or widget disabled) (can be nil)
    align: WidgetAlignProc,     // set the x and y (used by the layout widgets to align the children) (can be nil)
}

Custom widget:

MyWidget :: struct {
    using widget: sgui.Widget, // all the widget procs take a widget as argument
    ... // data of your widget
}


my_widget_draw :: proc(widget: ^sgui.Widget, ui: ^sgui.Ui) {
    self := cast(^MyWidget)widget
    sgui.draw_rect(ui, self.x, self.y, self.w, self.h, Color{255, 0, 0, 255})
    ...
}

The widgets function should follow this convention:

• my_widget: constructor (used when building UI)
• my_widget_<foo>: example (my_widget_draw)

The following may change:

The last argument of the widget constructor is named attr and contains the widget attributes (props, style, data, ...; this the user configurable data). SGUI currently uses a global variable to set the default value:

my_widget :: proc(args..., attr := DEFAULT_ATTRS.my_widget)

This provides an easy way to set the defaults for all the widgets and improve the readability when creating UIs.

Here are some design experimentations made in this project.

SGUI doesn't allow to get any widgets from a specific id, however, it is possible to store widgets manually to make them available globally. The key can be either a string or an int (the two can be useful depending on the situation). This is done to only save what needs to be saved and not fill a map with useless values.

// store the pannel
ui->store("pannel", pannel_widget)
...
// get it back
pannel_widget := ui->widget("pannel")
// if you have a "toggle pannel button" you can hide the pannel like this
sgui.widget_toggle(pannel_widget, ui)

One UI can store multiple roots. This can be used to create different menus inside the same window.

This is a weird component that may require a change. This is used to add a draw function to a priority queue that will be processed after all the widgets are drawn. This is currently used to draw widgets that have a positive z index, but the main objective of this system is to allow the user to draw anything he wants after the widgets are drawn (like floating pop ups, ...). This is an attempt to give full control to the user instead of restricting him to a portion of the screen (like in a draw_box widget for instance).
