Munin

A lightweight, elegant Terminal UI (TUI) framework for Odin, inspired by the Elm Architecture.

Features

Elm Architecture Pattern: Clean separation of Model, Update, and View
Cross-Platform: Works on Linux, macOS, and Windows
Event-Driven Rendering: Only redraws when state changes or window resizes
Window Resize Detection: Automatically detects and responds to terminal resize events
Mouse Support: Full mouse tracking including clicks, drags, and hover events
Screen Modes: Fullscreen (alternative buffer) or inline rendering
Advanced Color Support: Basic ANSI colors, 24-bit RGB, and 256-color palette
Styling: Fluent API for styling with borders, padding, margins, and layout
Reusable Components: Pre-built components for lists, tables, inputs, spinners, and more
Memory Safe: Built-in allocator support with debug-time memory tracking
Zero Dependencies: Uses only Odin core libraries

Installation

Clone the repository and import it into your Odin project:

git clone https://github.com/amjadjibon/munin.git

Quick Start

Here's a minimal counter example:

package main

import munin "../../munin"
import "core:fmt"
import "core:strings"

// 1. Define your Model
Model :: struct {
	counter: int,
}

init :: proc() -> Model {
	return Model{counter = 0}
}

// 2. Define your Messages
Increment :: struct {}
Decrement :: struct {}
Quit :: struct {}

Msg :: union {
	Increment,
	Decrement,
	Quit,
}

// 3. Define your Update function
update :: proc(msg: Msg, model: Model) -> (Model, bool) {
	new_model := model
	should_quit := false

	switch m in msg {
	case Increment:
		new_model.counter += 1
	case Decrement:
		new_model.counter -= 1
	case Quit:
		should_quit = true
	}

	return new_model, should_quit
}

// 4. Define your View function
view :: proc(model: Model, buf: ^strings.Builder) {
	munin.clear_screen(buf)
	munin.print_at(buf, {2, 2}, fmt.tprintf("Counter: "), .BrightGreen)
	munin.print_at(buf, {11, 2}, fmt.tprintf("%d", model.counter), .BrightRed)
	munin.print_at(buf, {2, 4}, "Press space to increment, d to decrement, q to quit", .White)
}

// 5. Define your Input handler
input_handler :: proc() -> Maybe(Msg) {
	if event, ok := munin.read_key().?; ok {
		if event.key == .Char {
			switch event.char {
			case ' ':
				return Increment{}
			case 'd':
				return Decrement{}
			case 'q', 'Q', 3:
				// q, Q, or Ctrl+C
				return Quit{}
			}
		}
	}
	return nil
}

// 6. Run your program
main :: proc() {
	program := munin.make_program(init, update, view)
	munin.run(&program, input_handler)
}

Building and Running

# Build and run an example directly
cd examples/counter
odin run main.odin -file

# Or build the example
odin build examples/counter -out:counter
./counter

# Run tests
cd munin
odin test .

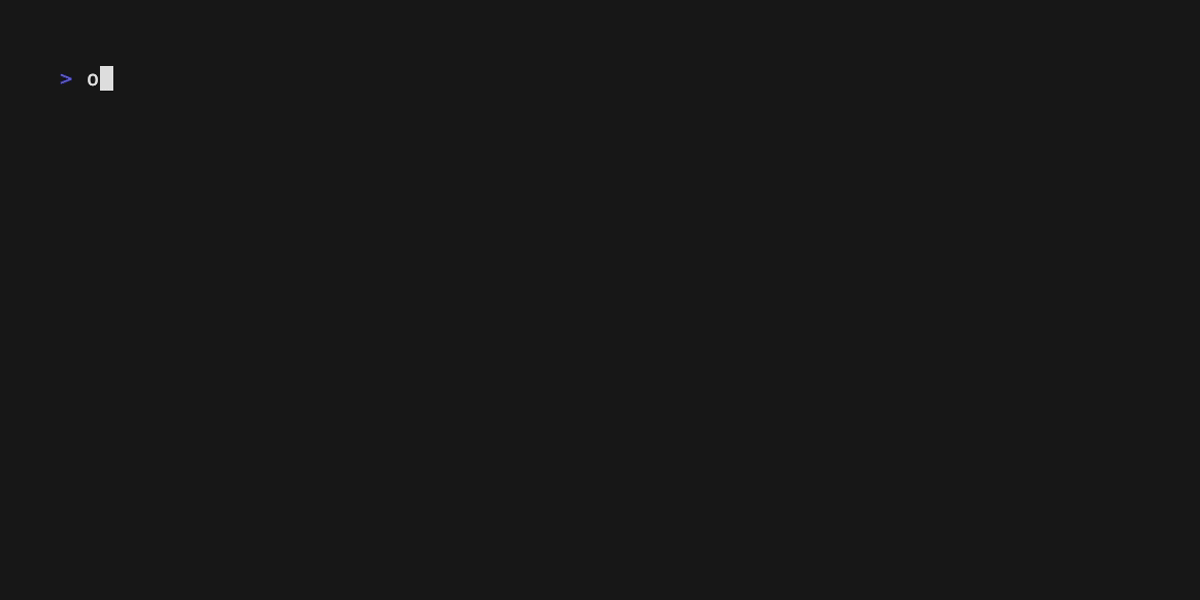

Output

Core Concepts

The Elm Architecture

Munin follows the Elm Architecture pattern with three main components:

Model: Your application state
Update: Pure function that transforms the model based on messages
View: Pure function that renders the model to the terminal

Program Lifecycle

// Create a program without subscriptions
program := munin.make_program(init, update, view)

// Or create a program with subscriptions (for time-based events)
program := munin.make_program(init, update, view, subscriptions)

// Run the program with optional parameters
munin.run(&program, input_handler, target_fps = 60, initial_mode = .Fullscreen, clear_on_exit = true)

API Reference

New! Check out the Styling & Layout Guide.

Core Functions

`make_program`

// Without subscriptions
make_program :: proc(
    init: proc() -> Model,
    update: proc(msg: Msg, model: Model) -> (Model, bool),
    view: proc(model: Model, buf: ^strings.Builder),
    allocator := context.allocator,
) -> Program(Model, Msg)

// With subscriptions
make_program :: proc(
    init: proc() -> Model,
    update: proc(msg: Msg, model: Model) -> (Model, bool),
    view: proc(model: Model, buf: ^strings.Builder),
    subscriptions: proc(Model) -> Maybe(Msg),
    allocator := context.allocator,
) -> Program(Model, Msg)

`run`

run :: proc(
    program: ^Program(Model, Msg),
    input_handler: proc() -> Maybe(Msg),
    target_fps: i64 = 60,
    initial_mode: Screen_Mode = .Fullscreen,  // .Fullscreen or .Inline
    clear_on_exit: bool = true,
)

Rendering Functions

Screen Control

clear_screen :: proc(buf: ^strings.Builder)
move_cursor :: proc(buf: ^strings.Builder, pos: Vec2i)
hide_cursor :: proc(buf: ^strings.Builder)
show_cursor :: proc(buf: ^strings.Builder)

Drawing

// Draw a box at position with width and height
draw_box :: proc(buf: ^strings.Builder, pos: Vec2i, width, height: int, color: Color = .Reset)

// Print text at position
print_at :: proc(buf: ^strings.Builder, pos: Vec2i, text: string, color: Color = .Reset)

// Print formatted text at position
printf_at :: proc(buf: ^strings.Builder, pos: Vec2i, color: Color, format: string, args: ..any)

// Draw centered title
draw_title :: proc(
    buf: ^strings.Builder,
    pos: Vec2i,
    width: int,
    title: string,
    color: Color = .Reset,
    bold := false,
)

Text Styling

set_color :: proc(buf: ^strings.Builder, color: Color)
set_bg_color :: proc(buf: ^strings.Builder, color: Color)
set_bold :: proc(buf: ^strings.Builder)
set_dim :: proc(buf: ^strings.Builder)
set_underline :: proc(buf: ^strings.Builder)
set_blink :: proc(buf: ^strings.Builder)
set_reverse :: proc(buf: ^strings.Builder)
reset_style :: proc(buf: ^strings.Builder)

Window Functions

// Get current terminal size
get_window_size :: proc() -> (width, height: int, ok: bool)

// Set terminal window title
set_window_title :: proc(buf: ^strings.Builder, title: string)

Input Functions

// Read keyboard input (non-blocking)
read_key :: proc() -> Maybe(Key_Event)

Types

`Vec2i`

2D integer vector for 0-based positions. {0, 0} is the top-left terminal cell.

Vec2i :: [2]int

// Usage
pos := Vec2i{x, y}
munin.print_at(buf, {10, 5}, "Hello", .Green)

`Color`

Color is a union type supporting multiple color formats:

// Basic ANSI colors (16 colors)
Basic_Color :: enum {
    Reset,
    Black, Red, Green, Yellow, Blue, Magenta, Cyan, White,
    BrightBlack, BrightRed, BrightGreen, BrightYellow,
    BrightBlue, BrightMagenta, BrightCyan, BrightWhite,
    Gray,  // Alias for BrightBlack
}

// 24-bit RGB color
RGB :: struct { r, g, b: u8 }

// 256-color palette (0-255)
ANSI256 :: distinct u8

// Union type
Color :: union { Basic_Color, RGB, ANSI256 }

// Usage examples
munin.print_at(buf, {0, 0}, "Basic color", .Red)
munin.print_at(buf, {0, 1}, "RGB color", RGB{255, 0, 128})
munin.print_at(buf, {0, 2}, "256 color", ANSI256(208))

`Key_Event`

Key_Event :: struct {
    key:   Key,
    char:  rune,
    shift: bool,
    ctrl:  bool,
    alt:   bool,
}

Key :: enum {
    Unknown,
    Char,
    Up,
    Down,
    Left,
    Right,
    Enter,
    Escape,
    Backspace,
    Tab,
    PageUp,
    PageDown,
}

`Mouse_Event`

Mouse_Event :: struct {
    button: Mouse_Button,
    type:   Mouse_Event_Type,
    x:      int,
    y:      int,
    shift:  bool,
    ctrl:   bool,
    alt:    bool,
}

Mouse_Button :: enum {
    None,
    Left,
    Right,
    Middle,
    WheelUp,
    WheelDown,
}

Mouse_Event_Type :: enum {
    Press,
    Release,
    Drag,
    Move,
}

Memory Management

Munin supports custom allocators and memory tracking:

main :: proc() {
    // Debug-time memory tracking
    when ODIN_DEBUG {
        track: mem.Tracking_Allocator
        mem.tracking_allocator_init(&track, context.allocator)
        context.allocator = mem.tracking_allocator(&track)

        defer {
            if len(track.allocation_map) > 0 {
                fmt.eprintf("=== %v allocations not freed: ===\n", len(track.allocation_map))
                for _, entry in track.allocation_map {
                    fmt.eprintf("- %v bytes @ %v\n", entry.size, entry.location)
                }
            }
            mem.tracking_allocator_destroy(&track)
        }
    }

    // Create program with custom allocator
    program := munin.make_program(init, update, view, allocator = context.allocator)
    munin.run(&program, input_handler)
}

Advanced Features

Subscriptions

Subscriptions allow you to handle time-based or external events:

subscriptions :: proc(model: Model) -> Maybe(Msg) {
    // Check for tick every frame
    if model.should_tick {
        return Tick{}
    }
    return nil
}

main :: proc() {
    program := munin.make_program(init, update, view, subscriptions)
    munin.run(&program, input_handler)
}

Window Resize Handling

Munin automatically detects window resizes. Get the current size in your view:

view :: proc(model: Model, buf: ^strings.Builder) {
    munin.clear_screen(buf)

    width, height, ok := munin.get_window_size()
    if !ok {
        width = 80
        height = 24
    }

    // Center content based on terminal size
    center_x := width / 2
    center_y := height / 2

    munin.print_at(buf, {center_x - 5, center_y}, "Centered!", .Green)
}

Custom Frame Rate

Control the rendering frame rate:

main :: proc() {
    program := munin.make_program(init, update, view)
    munin.run(&program, input_handler, target_fps = 30)  // 30 FPS
}

Screen Modes

Munin supports two rendering modes:

// Fullscreen mode (alternative screen buffer - default)
munin.run(&program, input_handler, initial_mode = .Fullscreen)

// Inline mode (renders in-place like a regular CLI app)
munin.run(&program, input_handler, initial_mode = .Inline)

// Toggle modes at runtime
munin.toggle_screen_mode(&program)
munin.set_screen_mode(&program, .Inline)

Mouse Input

Mouse tracking is automatically enabled. Handle mouse events in your input handler:

input_handler :: proc() -> Maybe(Msg) {
    if event, ok := munin.read_input().?; ok {
        switch e in event {
        case munin.Key_Event:
            // Handle keyboard
        case munin.Mouse_Event:
            if e.button == .Left && e.type == .Press {
                return Click{x = e.x, y = e.y}
            }
        }
    }
    return nil
}

Styling System

Munin includes a powerful styling system:

import munin "path/to/munin"

// Create a styled box
style := munin.new_style()
style = munin.style_foreground(style, .BrightCyan)
style = munin.style_background_str(style, "#1e1e1e")
style = munin.style_bold(style)
style = munin.style_padding_all(style, 1)
style = munin.style_border(style, munin.Border_Rounded)
style = munin.style_border_foreground(style, .BrightMagenta)
style = munin.style_width(style, 40)

output := munin.style_render(style, "Hello, Munin!")
defer delete(output)  // Important: must delete returned string

fmt.println(output)

Layout Composition

Compose multiple styled blocks:

// Horizontal layout
left := munin.style_render(style_left, "Left Panel")
defer delete(left)
right := munin.style_render(style_right, "Right Panel")
defer delete(right)

joined := munin.join_horizontal(.Center, {left, right}, gap = 2)
defer delete(joined)

// Vertical layout
top := munin.style_render(style_top, "Header")
defer delete(top)
bottom := munin.style_render(style_bottom, "Footer")
defer delete(bottom)

stacked := munin.join_vertical(.Left, {top, bottom}, gap = 1)
defer delete(stacked)

See docs/STYLE.md for complete styling documentation.

Components

Munin provides a set of reusable UI components in the components package:

Box: Customizable boxes with borders
Input: Text input fields
List: Lists with multiple styles (bullet, numbered, checkboxes)
Pagination: Page navigation component
Progress: Progress bars
Spinner: Loading spinners with various styles
Table: Data tables with headers and rows
Text: Text rendering with word wrap
Timer: Countdown and stopwatch timers

See the examples/ directory and docs/ for component documentation.

Examples

The examples/ directory contains numerous examples demonstrating various features:

counter: Basic counter app (canonical example)
fstree: Full file system tree viewer (like tree command)
tree: Tree component demo with sample data
style: Lipgloss-inspired styling system
mouse: Mouse input and click handling
hover: Hover effects and tracking
lists: Various list styles and scrolling
tables: Data table rendering
sqlite_browser: Interactive SQLite table/schema/query browser
forms: Input forms with validation
spinners: Loading animations
progress: Progress bar implementations
timer: Countdown and elapsed time
pagination: Multi-page navigation
inline: Inline rendering mode
boxes: Border and box styles
colors: Color palette showcase

Each example demonstrates:

Responsive layout that adapts to terminal size
Colored rendering and styling
Input handling (keyboard and/or mouse)
Memory safety with tracking allocators

Performance Tips

Event-Driven Rendering: Munin only redraws when state changes, window resizes, or subscriptions fire. This minimizes CPU usage and rendering overhead.
String Builder Efficiency: The framework uses a pre-allocated string builder (4KB default) to minimize allocations during rendering.
Frame Rate Control: Set an appropriate target_fps based on your needs. 60 FPS is the default, but 30 FPS is often sufficient for most TUI apps.
Minimize View Complexity: Keep your view function efficient since it's called every frame when redrawing.
Memory Management: Style render functions (style_render, join_horizontal, join_vertical) return heap-allocated strings. Always delete() them after use to prevent memory leaks.
Use Temp Allocator: For temporary allocations within the view function, use context.temp_allocator which is automatically cleared at the end of each frame.

Testing

Run the test suite:

cd munin
odin test .

The tests cover:

ANSI escape sequence stripping
Line counting with Unicode and wide characters
Terminal mode setup and teardown
Input parsing for keyboard and mouse events
Rendering utility functions

Platform Support

Linux: Full support (POSIX termios for raw mode)
macOS: Full support (POSIX termios for raw mode)
Windows: Partial support (Win32 console APIs with virtual terminal processing)

Note: Windows support is implemented in the codebase but may have limitations. Testing on Windows is recommended.

License

This project is open source. See LICENSE file for details.

Contributing

Contributions are welcome! Please feel free to submit issues and pull requests.

Documentation

Styling & Layout Guide - Comprehensive guide to the styling system
Component Docs - Individual component documentation
Examples - Complete working examples

Acknowledgments

Inspired by:

The Elm Architecture
Bubble Tea (Go TUI framework)
Lipgloss (Go styling library)
Termbox and other terminal libraries
