A finite element solver written in Odin.

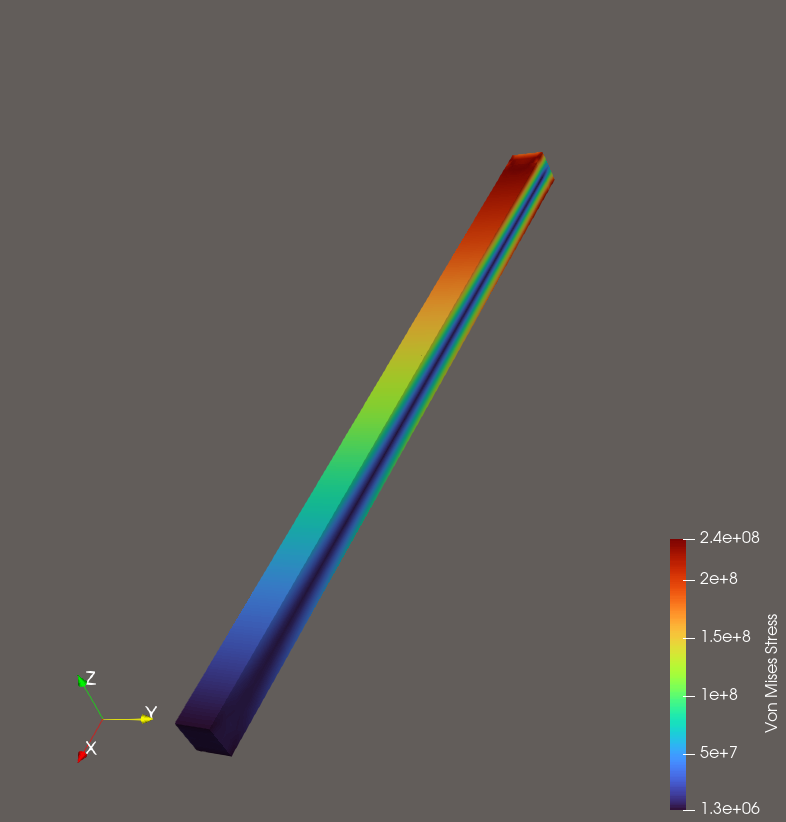

Von Mises effective stress on a cantilever beam under end loading.

FEMto solves partial differential equations for common physics problems. Right now that means heat conduction, small-strain elasticity (3D). Time-dependent problems are supported, along with nonlinear and spatially varying material models, source terms and boundaries.

It’s written in a straightforward procedural style, with minimal dependencies.

Configuration is handled through a TOML-based system for quick setup and iteration. For anything beyond that, FEMto exposes a plugin system so you can extend it with native code and wire it into configs.

• 1D/2D/3D meshes via Gmsh
• Natively uses embedded meshes: 1D curves and 2D surfaces are always in 3D space
• Visualization via ParaView
• Steady-state and transient solves
• TOML-based configuration system
• Native plugin system (shared libraries / DLLs)
• Time space and solution-dependent materials, sources, and boundary conditions
• Nonlinear heat conduction
• First and second order solution accuracy.
• Algebraic multigrid via AMGCL
• Multithreaded assembly and solve

• 3D supports tetrahedral and hexahedral meshes
• Meshes must be conforming
• Every entity (including domains) needs a physical name
• Not all models will work on all meshes due to element, dimensionality, or axis-aligned restrictions the config system will error if this is the case.
• Gmsh format 2.2 (binary only)

FEMto depends on Odin and a C++ toolchain (for AMGCL).

First, build the AMGCL wrapper:

Linux/macOS

clang++ -std=c++17 -O2 -I./vendor -c src/foreign_wrappers/amgcl.cpp -o ./.build/amgcl_wrapper.o
llvm-ar rcs ./.build/amgcl.a ./.build/amgcl_wrapper.o

Windows (clang)

clang++ -std=c++17 -O2 -I./vendor -c src/foreign_wrappers/amgcl.cpp -o ./.build/amgcl_wrapper.obj
llvm-ar rcs ./.build/amgcl.lib ./.build/amgcl_wrapper.obj

Then build FEMto (add .exe to the output name on Windows):

odin build src -out:./.build/femto -o:speed -microarch:native

And run an example:

./.build/femto ./examples/00_conduction.toml

To view results, use ParaView or load the output in Python with PyVista.

Config reference is in progress, for now see the examples folder.

The most basic configuration is shown below:

model = "conduction"

mesh.path = "./meshes/2d_square.msh" # all paths are relative to the config file

[[materials.conduction]]
kind = "builtin:constant_material"
density = 7
conductivity = 10
specific_heat_capacity = 12

[[boundaries.conduction]]
kind = "builtin:isothermal"
boundaries = ["left"] # these are boundary names from the mesh we want to apply the boundary to.
temperature = 120

Plugins are still early, but can be used for extending models without recompiling FEMto itself.

Examples live in examples/plugins, and the built-in models work in a similar fashion under src/models/*/builtin.odin.

A plugin defines functions that take config data and return implementations used by a model.

FEMto is split into two layers:

• src/fem: core FEM primitives, designed to be used independently of app if needed.
• src/*: everything else is application code, physics models, config etc.

Proper validation work is on going. Linear elasticity matches euler bernoulli for long slender beams and conduction results seem reasonable for simple geometries.

The two major costs in an FEM simulation are system assembly and sparse linear solving.

AMGCL handles linear solving and has been fast enough that optimizing its usage hasn't been a priority. Though it's already orders of magnitude faster than the previous bespoke implementation.

System assembly is multithreaded, with basic element reordering to reduce contention, but hasn't been optimized beyond that.

The codebase is simple and avoids expensive operations in hot loops, so baseline performance is reasonably good. Planned work includes vectorizing element kernels across batches of similar elements to amortize interface overhead and improve arithmetic throughput.

Always welcome.

See LICENSE file.
