Mothball awakened, this project won't be mothballed.

This is a Mothball language editor, Credits:

• Original Mothball (by CyrenArkade)
• Extended Mothball (forked, by Anonnoob)
• MothballApp2 (by Anonnoob)

Mothmotica adds more stratfinding features to the existing mothball, the syntax was also modified to make more sense in a PC editor (the original mothball syntax is more suitable for discord/mobile users)

Like Odin, the language it is implemented in, Mothmotica emphasizes clarity, simplicity, and the joy of Mothballing.

If you encounter any bugs or want to request a feature, contact me on Discord: Curryocity#0601.

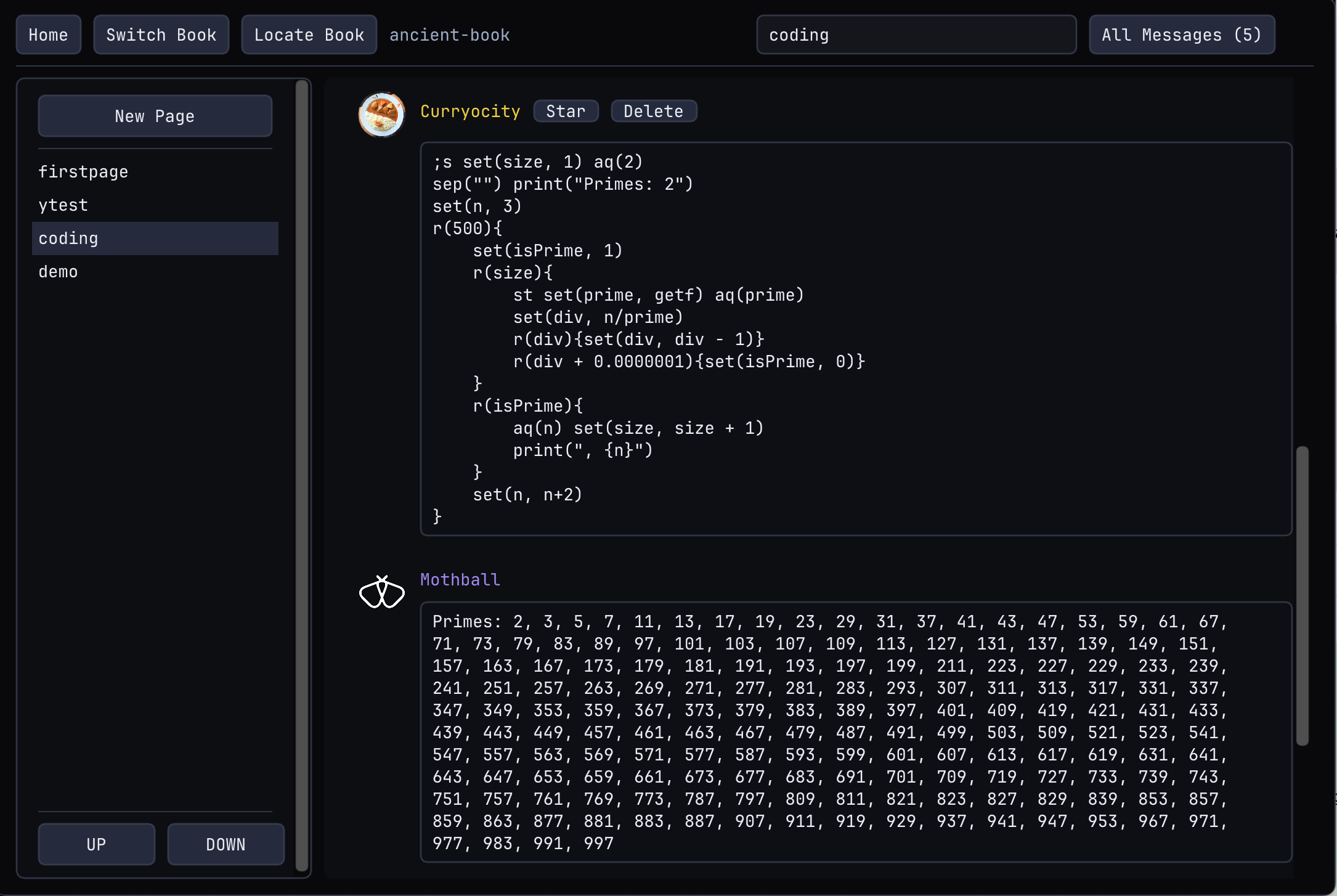

Please use Mothball to simulate minecraft movement. Do not use Mothball to find prime numbers. I am warning you, Curryocity.

Thank you.

Download the latest release for your platform, then extract the archive.

Each artifact contains the GUI app, the CLI, assets, README, and license.

On Windows:

1. Download mothmotica-vX.X.X-windows-x86_64.
2. Extract the archive.
3. Open the extracted folder.
4. Run mothmotica-gui.exe.

On Linux:

1. Download mothmotica-vX.X.X-linux-x86_64.
2. Extract the archive.
3. Open a terminal in the extracted folder.
4. Run ./mothmotica-gui.

On macOS:

1. Download mothmotica-vX.X.X-macos-arm64 for Apple Silicon, or mothmotica-vX.X.X-macos-x86_64 for Intel.
2. Extract the archive.
3. Open the extracted folder.
4. Right-click Mothmotica.app, choose Open, then confirm.

The macOS app is ad-hoc signed for packaging, not notarized, so the right-click Open step may be needed on first launch.

For CLI use, run the bundled mothmotica-cli binary from a terminal.

By starting the command with ;y instead of ;s. The mothball context is set to the Y simulator. Here are the common ;y command and its meaning:

Finding the airtime for -1 and -5 drop, and the height ranges that has the same airtime:

;y jto(-1) tier cto(-5) tier

Output:

Peak y = 1.249187 (t = 6)
Landed y = -1 (+14t)
Tier Y-Range: (-0.860365, -1.445374)
Landed y = -5 (+5t)
Tier Y-Range: (-4.439201, -5.344633)

Ceilings and slime blocks are queued events.

For jto/cto command, the landing is only registered if slime queue is empty .

Mothmotica expects player to finish bouncing before landing.

jump at y = 1.5, bounce at y = 0 and y = 0.0625, coast until landing at y = 1.5

;y y(1.5) slimeq(0, 0.0625) jto(1.5) outy(1.5)

Output:

Peak y = 2.749187 (t = 6)
Slime y = 0 (t = 16)
Peak y = 2.101691 (t = 23)
Slime y = 0.0625 (t = 31)
Peak y = 1.509956 (t = 37)
Landed y = 1.5 (+37t)
Y: 1.5 + 0.009956

If you think it is too noisy, do observe(0) ( alias obs(...)).

;y obs(0) y(1.5) slimeq(0, 0.0625) jto(1.5) outy(1.5)

Output:

Landed y = 1.5 (+37t)
Y: 1.5 + 0.009956

Test the airtime of 3bc -0:

;y cq(3) jto(0) mes

Output:

Ceil y = 3 (t = 6)
Landed y = 0 (+11t)
(y, vy) = (0.054893, -0.447498)

In original mothball, the repeat function r(...) had such syntax:

r(strat, times)

Example:
r(sj(3) s.wa sa(8) outz outx x(0), 50)

In the example above, the entire sj(3) s.wa sa(8) outz outx x(0) is treated as an argument, strat. However, it consists of several commands, and several "identifiers" should really be separated by comma. But they are separated by spaces here, it is clearly a different structure.

In Mothmotica:

r(times) {strat}

Example:
r(50){
    sj(3) s.wa sa(8) outz outx x(0)
}

Mothmotica uses inv(n){...} as the base inverse command. It also keeps bwmm(n){...} as a historical Mothball shortcut:

bwmm is syntax sugar because it was the most popular function in Mothball. For new explicit code, prefer the general @mm, @b, and @ld argument modifiers.

The general form is to use @mm, @b, or @ld inside an expression:

This avoids adding every x and xz variant. For example:

xzinv(@mm -1, @b 1){...}

is the same as:

xzinv(-1-bx, 1-bx){...}

Look at this:

;s inv(@mm 5){ sj45(12) sj45(12)} |
save("mm")

print("Normal:")
poss(0.01){sj45(25)}

print("Ladder:") load("mm")
poss(0.01, bx/2){sj45(25)}

print("Blockage:") load("mm")
poss(0.01, 0){sj45(25)}

Output:

Lerped Vz: -0.249583
Normal:
Poss: (t = 1...25, thres = 0.01)
t = 2: 1.5 + 0.000551
t = 6: 2.875 + 0.007956
t = 10: 4.1875 + 0.006573
t = 17: 6.375 + 0.005338
t = 23: 8.1875 + 0.001976
Ladder:
Poss: (t = 1...25, thres = 0.01)
t = 9: 3.5625 + 0.009111
t = 19: 6.6875 + 0.00077
Blockage:
Poss: (t = 1...25, thres = 0.01)
t = 3: 1.25 + 0.004408
t = 5: 1.9375 + 0.007608
t = 8: 2.9375 + 0.008328
t = 20: 6.6875 + 0.002733

In this particular example, the savestate could be replaced by storing the velocity in a variable and resetting the vz to that variable.(Although savestate is more readable)

But there is so much more you can do with savestates.

print() accepts multiple arguments and prints their text or values without adding a newline.

println() does the same thing and adds a newline.

Arguments are separated by sep(), which defaults to a single space. sep() resets the separator to a single space, and sep("") removes the separator.

silent(1) suppresses generated helper messages such as inverse lerp results and Y-sim landing/observer messages. Intentional output commands like print(...), println(...), outvy, and other out... commands still print. Use silent(0) to turn those helper messages back on.

Like:

;s
set(i,0) set(a,0) set(b,1)
sep("")
println(i,"th fibonacci: ",a)
set(i,i+1)
println(i,"th fibonacci: ",b)
r(8){
    set(i,i+1) set(c,a+b)
    println(i,"th fibonacci: ",c)
    set(a,b) set(b,c)
}

Output:

0th fibonacci: 0
1th fibonacci: 1
2th fibonacci: 1
3th fibonacci: 2
4th fibonacci: 3
5th fibonacci: 5
6th fibonacci: 8
7th fibonacci: 13
8th fibonacci: 21
9th fibonacci: 34

mes() (full name measure()) is really good for debugging

It accepts multiple variables like mes(var1, var2, var3) And it outputs like (var1, var2, var3) = (3.5, -4, 0.67) in a single line.

Apart from variables, you can put in built-in identifier x/xb/xmm/xld/z/zb/zmm/zld/vx/vz/f/tick to measure the state of the player. Like:

;s f(15) wj.wd sa.wd(11) s.wd mes(x,z,vx,vz)

Output:

(x, z, vx, vz) = (-1.507294, 0.870365, -0.274478, 0.158493)

mes without arguments is equivalent to mes(x,z,vx,vz) in ;s context. And mes(y,vy) in ;y context.

From the original mothball README:

Finding the speed required for a 5 block, no 45: sta speedreq(5, sj(12)) b. Note the sta before the speedreq. This is to make the player start midair, since mothball usually assumes the player starts on the ground.

As you can see, they use sta to hint that the next velocity is going to be airborne. This works by implicitly setting player.prev_sprint into airslip(=1.0)

That works in mothmotica, but we prefer to use air for explicitly setting player's prev_sprint to airslip.

Example 1:

;s air inv(@mm 2.5){sj45(12) zmm} | poss(0.005){sj45(25)}

Output:

Lerped Vz: 0.086059
Zmm: 2.5
Poss: (t = 1...25, thres = 0.005)
t = 11: 4.375 + 0.000153
t = 19: 6.8125 + 0.003243

Example 2:

;s gnd inv(1.3125){sa(11) zr} outvz

Lerped Vz: 0.057208
Z: 1.3125
Vz: 0.192659

In mothball, although you can do var(a, outx) to store the current x position into variable a. But the outx command also executes and prints the line. Which is a really stupid design.

I remember quiting to make a number guessing game in mothball because that outx/z cannot shut up

(Note that mothmotica uses set() instead of var())

In mothmotica, we can do set(a, getx) and it will be silent.

These built-in constants are also read-only:

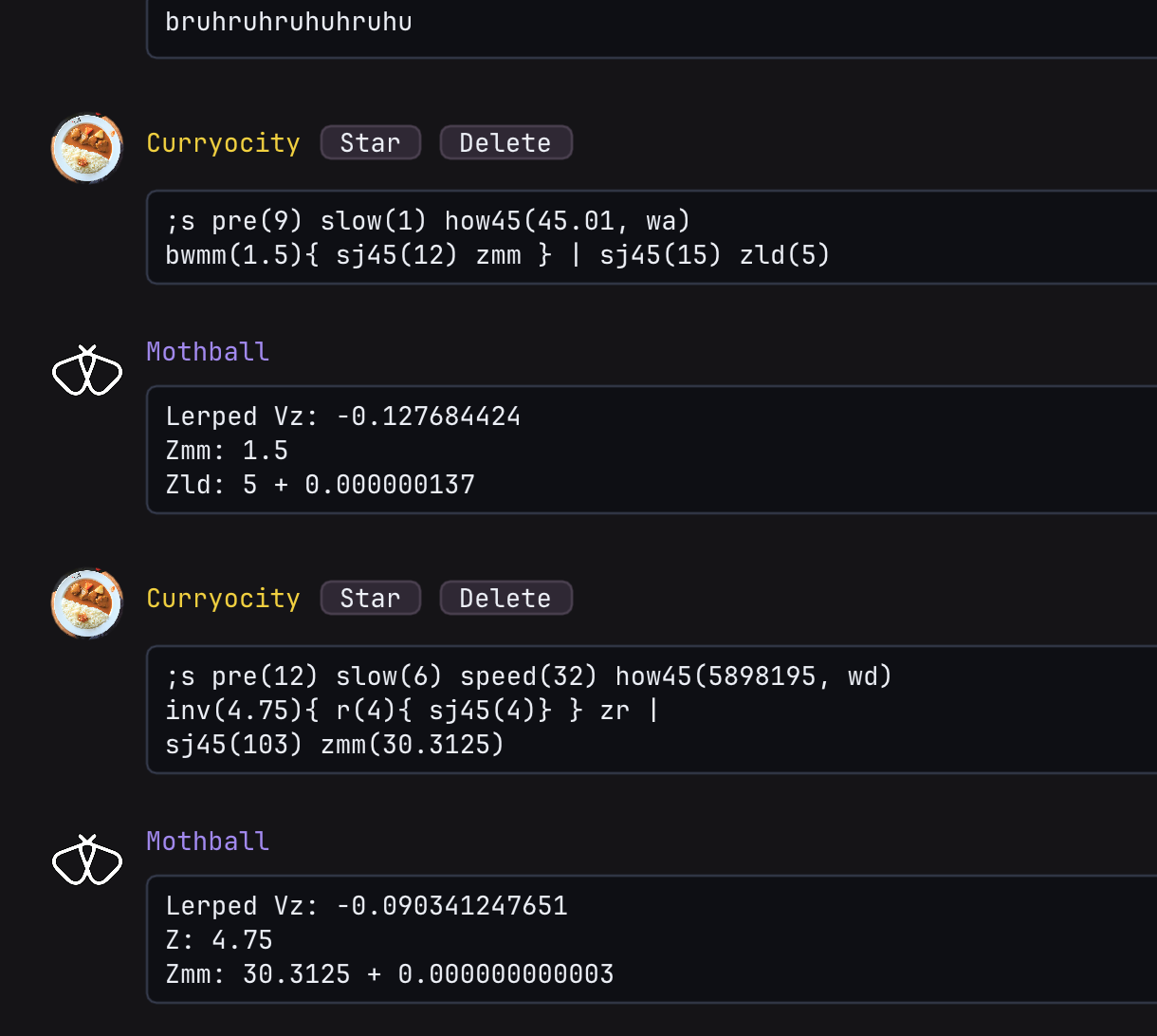

how45(offset, keys) changes how sj45, sa45, and other 45 movement functions behave. By default, 45 strafe is:

how45(45, wa)

The first argument is the facing offset. The second argument is the movement input used by the 45 strafe, such as wa or wd.

This is useful for 45.01 strafe or half angle strafes

Example: 12.25bm 8-8 via 315 half angle strafes:

;s how45(315, wd) f(180) r(3){sj(12)} s zmm(-12.25) |
sj(1,45) f(0) sa45(11) r(3){sj45(12)} zmm(12.25) | sj45(22) zb

Output:

Zmm: -12.25 + 1.745395
Zmm: 12.25 - 0.030922
Zb: 8.00006

Sometimes you hate movement branching or just want to test what if next tick hits inertia. Use this.

Notes:

1. the unit of angle is always in degrees.

2. abs(...) can take in multiple values and treat it as the norm of the vector.
