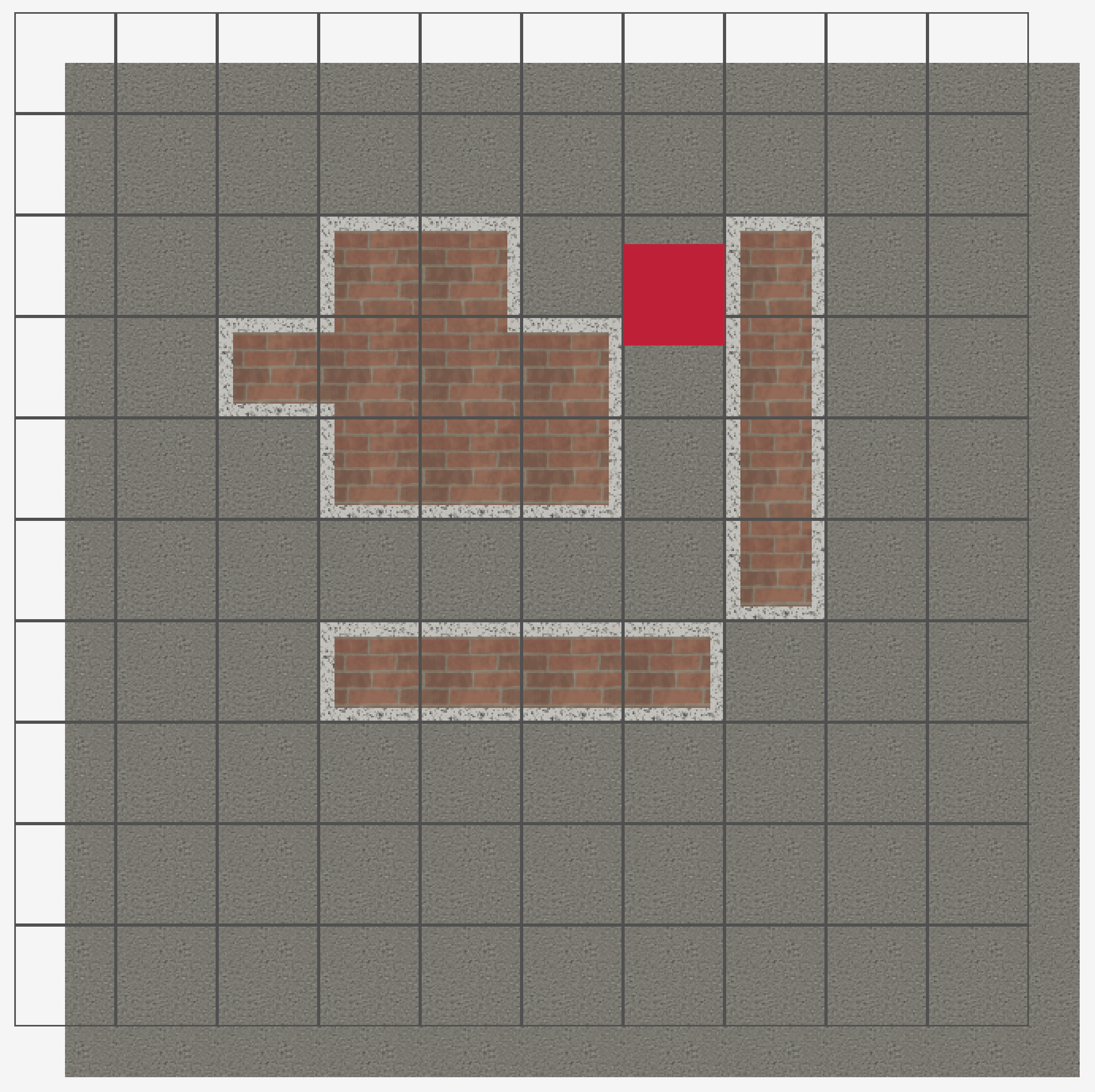

Example of pixel perfect tilemap collision with code to render a wang tile tilemap for smooth borders.
collision.odin contains various functions for different types of collision detection. pixel_perfect_collision_steps is the most accurate one and works for fast moving objects
Example usage it just requires movement direction and position. Will also need a global variable for the level.
player_move :: proc() {
deltaTime := rl.GetFrameTime()
moveDirection := [2]f32{}
//Move player in certain direction
if rl.IsKeyDown(.RIGHT) {
moveDirection.x += 1
}
if rl.IsKeyDown(.LEFT) {
moveDirection.x -= 1
}
if rl.IsKeyDown(.DOWN) {
moveDirection.y += 1
}
if rl.IsKeyDown(.UP) {
moveDirection.y -= 1
}
new_x := player.position.x + moveDirection.x * player.speed * deltaTime
new_y := player.position.y + moveDirection.y * player.speed * deltaTime
pixel_perfect_collision_steps(new_x, new_y, moveDirection)
//pixel_perfect_collision(new_x, new_y, moveDirection)
//next_to_wall(new_x, new_y, moveDirection)
//naive_collision(new_x, new_y, moveDirection)
}

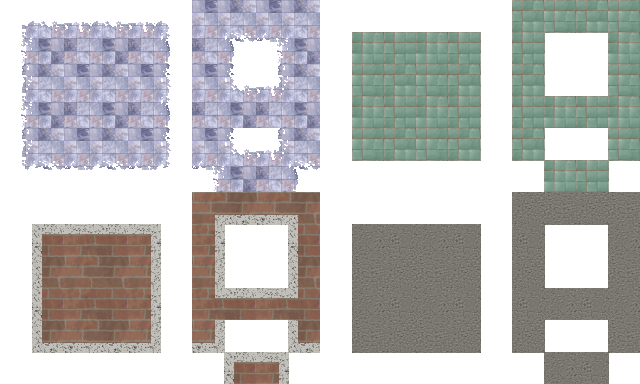

In tilemap.odin contains code for rendering wang tiles smoothly. It uses a layer approach so the use of transparent border tiles can be used therefore not requiring an artist to draw every combination of neighbouring tiles.
an enum is used to detemine tile locations. location is based on the top left corner piece as its starting point.
TILE_BITMASK := map[TILE_ENUMS][2]int {
.Floor={5,3},
.Wall={0,3}
}
load_texture :: proc() {
WORLD_TEXTURE = {rl.LoadTexture("tilemap.png")}
}
unload_texture :: proc() {
rl.UnloadTexture(WORLD_TEXTURE.rock)
}
Combinations :: struct {
topLeft: [2]int,
top: [2]int,
topRight: [2]int,
centerLeft: [2]int,
center: [2]int,
centerRight: [2]int,
bottomleft: [2]int,
bottom: [2]int,
bottomRight: [2]int,
bottomLeftRight: [2]int,
bottomRightLeft: [2]int,
topRightLeft: [2]int,
topLeftRight: [2]int,
crossLeftRight: [2]int,
crossRightLeft: [2]int
}
